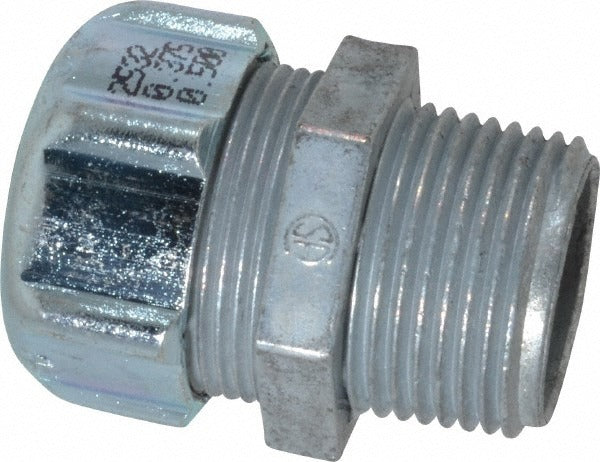

Thomas Betts 2532 Liquidtight Straight Cord Grip 3/4 Npt

Product Description

The THOMAS BETTS 2532 is a straight liquidtight strain relief cord grip designed to secure and protect electrical cables where they enter conduit fittings, enclosures, or junction boxes. Constructed from zinc, this cord grip accepts cables ranging from 0.375 to 0.5 inches in diameter and threads into a 3/4-inch NPT entry. The overall length is 1.75 inches. It maintains a liquidtight seal around the cable while providing positive strain relief, preventing tension at the termination point. Electricians and maintenance technicians install this fitting in wet, damp, or industrial locations where cable protection and ingress resistance are required.

This cord grip is suited for use in commercial, industrial, and residential electrical applications where cables must pass through enclosures, control panels, machinery, or conduit bodies. The straight configuration is appropriate for direct in-line entries. The 3/4-inch NPT thread is a common trade size that fits standard knockouts and conduit hubs. Zinc construction provides corrosion resistance adequate for most indoor and light-duty wet-location installations.

Key Features

• Accepts cable diameters from 0.375 to 0.5 inches for a secure, liquidtight grip
• 3/4-inch NPT thread fits standard trade-size knockouts and conduit hubs
• Straight body configuration for direct in-line cable entry
• Zinc construction offers corrosion resistance in damp and light industrial environments
• Compact overall length of 1.75 inches suits tight enclosure installations
• Provides positive strain relief to protect terminations from tension and pull-out

Compatibility

Designed as an OEM-style replacement or new-installation cord grip for standard 3/4-inch NPT liquidtight conduit fittings, enclosures, and control panel knockouts in commercial and industrial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and lock out the panel before routing cables or making connections at any enclosure. Thread the cord grip into the 3/4-inch NPT entry by hand first, then tighten with the appropriate wrench to ensure a liquidtight seal without over-stressing the zinc body. Verify that the cable jacket is clamped securely within the grip range of 0.375 to 0.5 inches before finalizing the installation.
