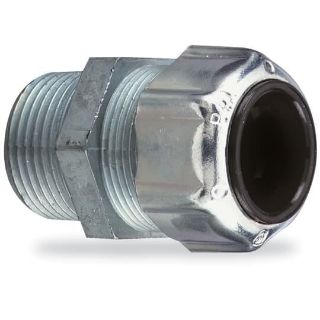

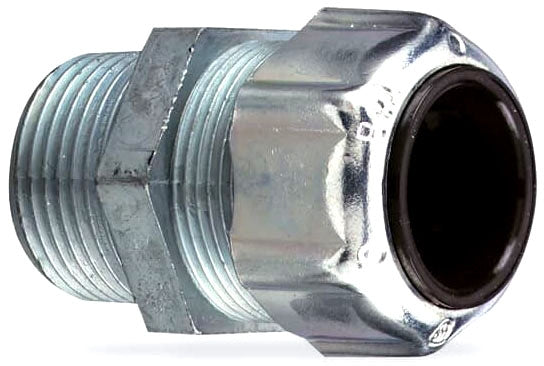

Thomas & Betts 2520 Cord Connector 1/2 Inch 0.125 to 0.250 Replacement MPN

Product Description

The Thomas & Betts 2520 is a liquidtight strain relief cord connector designed for use with cords ranging from zero point one two five inches to zero point two five zero inches in diameter. This connector is made from die-cast zinc, ensuring durability and reliability in various applications.

• Fits cords ranging from zero point one two five inches to zero point two five zero inches.
• Suitable for dry, hazardous, and wet locations.
• Provides grounding continuity for cable armor.

Product Highlights

This cord connector is ideal for control and power cable applications. It features sturdy neoprene bushings and tapered hub threads. The connector forms a mechanical grip and offers a water and oil-resistant seal for various cable types.

Product Information

Standard Information

• Manufacturer: Thomas & Betts
• Type: Straight

Technical Specifications

• Application: Dry/Hazardous/Wet Location
• Approval: UL, CSA
• Cord Size: 0.125 to 0.25 Inch
• Material: Die-Cast Zinc Body, Steel Gland Nut, Neoprene Bushing
• Thread Size: 1/2 Inch
