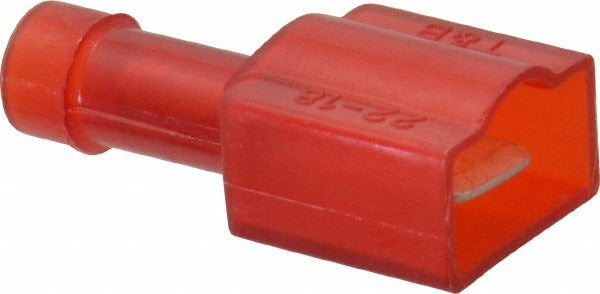

Thomas Betts 18RA-251T Male Wire Disconnect 22-18 Awg

Product Description

The THOMAS BETTS 18RA-251T is a fully insulated male wire disconnect terminal designed for secure, push-on electrical connections in control wiring, appliance wiring, and panel assembly applications. The terminal accepts 22 to 18 AWG wire and features a 0.25 inch tab width for standard quick-disconnect receptacles. The nylon insulation is rated UL 94 V-0 for flame resistance and is colored red for easy AWG range identification at a glance. These disconnects are commonly installed by electricians, HVAC technicians, and appliance service professionals where reliable, vibration-resistant connections are required without soldering.

This terminal is suited for residential and light commercial wiring tasks including HVAC control circuit connections, appliance harness terminations, and low-voltage panel wiring. The 0.25 inch male tab mates with standard female quick-disconnect receptacles. The red nylon insulation sleeve provides full coverage over the barrel and wire entry point, protecting against accidental contact and short circuits. Sold in a package quantity of 50, this part suits service technicians stocking field kits as well as shop assemblers working in volume.

Key Features

• Fully insulated nylon sleeve rated UL 94 V-0 for flame resistance
• Compatible with 22 to 18 AWG wire for a secure crimped connection
• 0.25 inch tab width mates with standard quick-disconnect receptacles
• Red insulation color follows industry AWG range color coding
• CSA Certified, RoHS Compliant, and UL Listed under UL File E66716
• Sold in a 50-piece package suitable for field and shop use

Compatibility

Designed as a standard 0.25 inch male quick-disconnect terminal compatible with female quick-disconnect receptacles accepting 22 to 18 AWG fully insulated male tabs.

Installation Notes

Installation is performed by licensed electricians or qualified service technicians. Always de-energize the circuit and verify absence of voltage before terminating or removing wire disconnect terminals. Use a ratcheting crimp tool rated for insulated terminals in the 22 to 18 AWG range to achieve a proper crimp without damaging the nylon sleeve. Do not over-crimp, as this can fracture the insulation and compromise the UL 94 V-0 flame-resistance rating.
