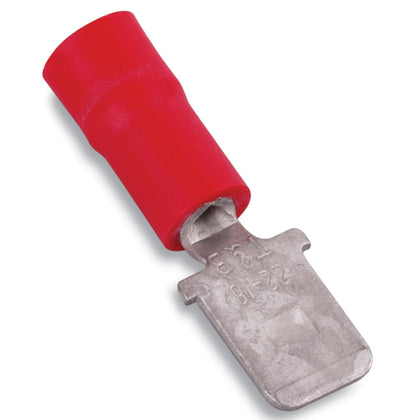

Thomas & Betts 18RA-250T Vinyl Insulated Male Tab, Wire Range #22-#18 AWG, .250x.032

Product Description

The THOMAS & BETTS 18RA-250T is a vinyl-insulated male tab designed for wire ranges from #22 to #18 AWG. It features a tab size of 0.250x0.032 inches and is made of copper with tin plating. This male disconnect is UL Listed, CSA Certified and RoHS compliant.

• Vinyl-Insulated Male Tab
• Wire Range NO.22-NO.18 AWG
• Tab Size .250x.032

Product Highlights

Vinyl-insulated male tab with a .250x.032 inch tab size, designed for wire ranges from #22-#18 AWG.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Manufacturer Part Number: 18RA-250T
• Country of Origin: UNITED STATES

Technical Specifications

• Brand: THOMAS & BETTS
• MPN: 18RA-250T
• Wire Range: NO.22-NO.18 AWG
• Tab Size: .250x.032
• Maximum Insulated: .150
• Length: .95 Inches
• Color: Red
• Material: Copper; Tin Plated
• Gender: Male
• Insulation Type: Fully
• Insulation Material: Vinyl
• Tab Width (Decimal Inch): 1/4
• Compatible Wire Size (AWG): 22-18
• Standards: UL Listed; UL File E66716; UL 94 V-0; CSA Certified; RoHS Compliant
• Country of Origin: UNITED STATES
• Insulation Color: Red
• UNSPSC Code: 39121409
• Allowable Gauge Range: 22 - 18
