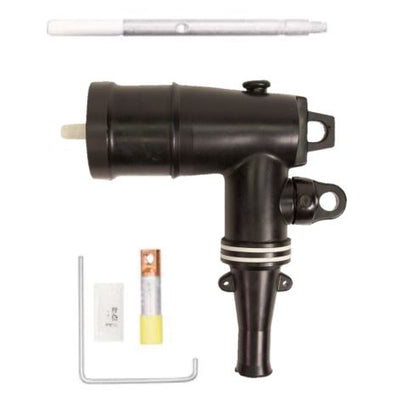

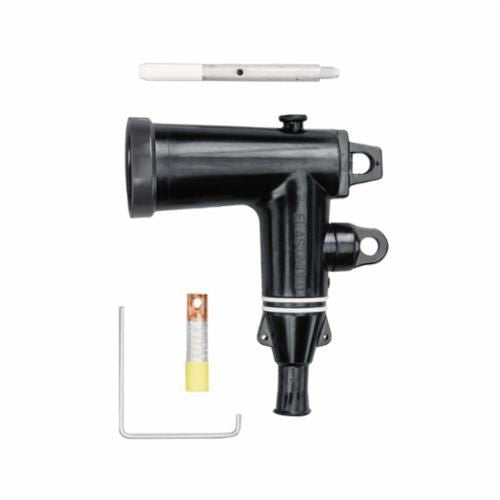

THOMAS & BETTS 162LR-B5250 Loadbreak Elbow Connector 15 kV (200 A)

Product Description

The THOMAS & BETTS 162LR-B5250 is a loadbreak elbow connector rated for 15 kV and 200 A. This connector is built for connecting and disconnecting cables in power distribution systems. It features a molded rubber housing that is fully shielded and submersible. The material used is peroxide-cured EPDM, providing durability and insulation.

• Includes bi-metal compression lug for secure conductor connection.
• Designed for use with hotstick tools for operation on energized systems.
• Complies with ANSI/IEEE Standard 386.

Product Highlights

The THOMAS & BETTS 162LR-B5250 connector accommodates various conductor sizes, ensuring versatility in applications.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Type: Loadbreak Elbow Connector

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 15 kV
• Conductor Size: 2/0 to 3/0 AWG
• Material: EPDM Rubber
• Connection: Bi-Metal Compression Lug
• Operating Temperature: -40 to +65 C
• Environmental Conditions: All Weather Conditions
• Dimensions: 9.03 inches L x 7.76 inches W
