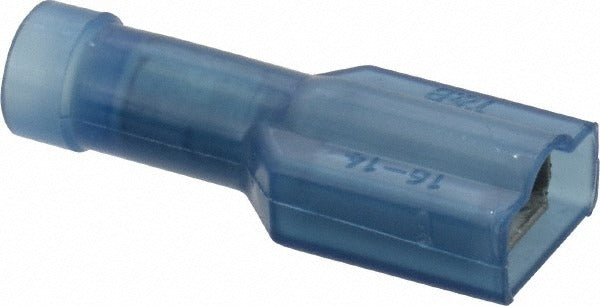

Thomas Betts 14RB-2577C Female Wire Disconnect 16-14 Awg

Product Description

The THOMAS BETTS 14RB-2577C is a fully insulated female wire disconnect designed for reliable electrical terminations in control wiring, appliance wiring, and general-purpose electrical assemblies. The connector accepts 16-14 AWG conductors and features a 0.25 inch tab width for mating with standard male spade terminals. The nylon insulation is rated UL 94 V-2 for flame resistance and is colored blue for quick visual identification of the 16-14 AWG wire range during installation and inspection. Sold in a package of 100 pieces, this disconnect is a standard stock item for electricians, HVAC technicians, and panel assemblers who need consistent, code-compliant terminations.

This female disconnect is suited for residential and light commercial wiring applications including HVAC control circuits, appliance harnesses, automotive auxiliary wiring, and low-voltage panel terminations. The fully insulated nylon sleeve protects against incidental contact with adjacent conductors and hardware. It is a common choice when a removable, serviceable connection is preferred over a soldered or permanently crimped joint.

Key Features

• Fully insulated nylon construction rated UL 94 V-2 for flame resistance
• Accepts 16-14 AWG wire for consistent, secure crimped terminations
• 0.25 inch tab width mates with standard male spade terminals
• Blue insulation color codes the 16-14 AWG range for fast visual ID
• CSA Certified, UL Listed (UL File E66716), and RoHS Compliant
• Packaged in quantities of 100 for shop stock and service van inventory

Compatibility

Designed for use with 16-14 AWG conductors and standard 0.25 inch male spade or tab terminals in residential and light commercial electrical and HVAC control wiring applications.

Installation Notes

Installation is performed by licensed electricians or HVAC technicians using an appropriately sized ratcheting or fixed-die wire terminal crimper rated for insulated disconnects. Always de-energize the circuit and follow lockout/tagout procedures before terminating or removing connectors. Do not use pliers or non-rated tools to crimp, as an improper crimp can result in a high-resistance connection or pull-out failure. Verify conductor strip length matches the barrel depth before crimping.
