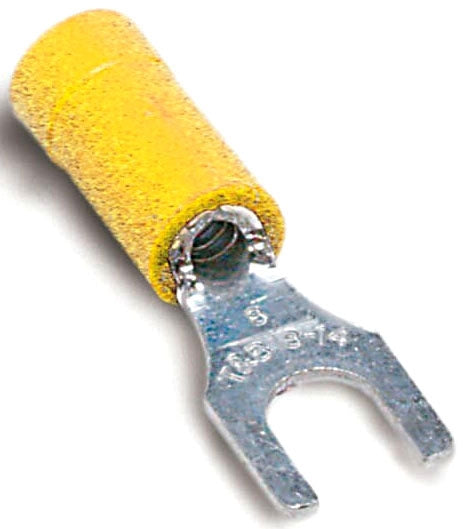

THOMAS & BETTS 10RC-8F Vinyl-Insulated Fork Terminal Wire Range #12-#10 AWG

Product Description

The THOMAS & BETTS 10RC-8F is a vinyl-insulated fork terminal designed for wire sizes #12 to #10 AWG. This copper terminal is electro tin-plated to enhance conductivity and corrosion resistance. It measures one point zero nine inches in length and three eighths inches in width, with a maximum insulation diameter of two hundred ten thousandths of an inch. Featuring a bolt hole size of #8, this terminal is suitable for various electrical applications.

• Vinyl insulation provides protection and stress relief.
• Copper construction ensures durability and conductivity.
• Fork design facilitates easy connections and disconnections.

Product Highlights

The THOMAS & BETTS 10RC-8F fork terminal is designed for reliability in electrical connections. Its color-coded insulation aids in identifying the wire size for each connection.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• MPN: 10RC-8F

Technical Specifications

• Type: Copper - Other
• Wire Range: #12 - #10 AWG
• Length: 1.09 inches
• Width: 0.38 inches
• Maximum Insulation: 0.210 inches
• Bolt Hole Size: #8
• Voltage Rating: 600V
• Temperature Rating: 105°C
• Flammability Rating: UL 94 V-0
• Material: Copper
