Product Description

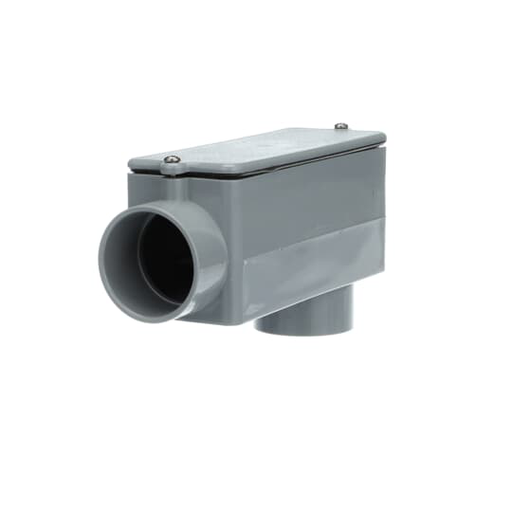

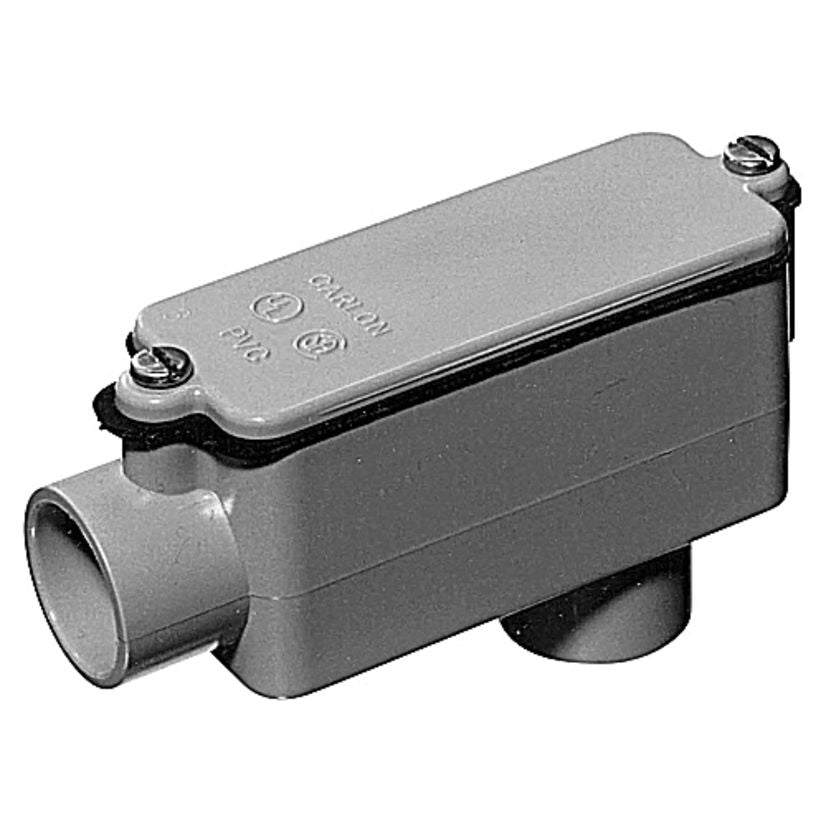

The Thomas & Betts E986H is a 1-1/2-inch LB-style conduit body designed for use with Schedule 40 and 80 rigid conduits. This product is constructed from PVC and has a gray finish. It includes a cover with a foam-in-place gasket and a textured lid. The conduit body has two ninety-degree hubs for connections and provides back access. It has a capacity of thirty-two cubic inches, allowing for sufficient space for wiring and connections.
- Constructed of PVC with gray finish
- Features two ninety-degree hubs
- Suitable for use with 1-1/2 inch Schedule 40 and 80 rigid conduits
Product Highlights
The Thomas & Betts E986H Conduit Body is ideal for various applications in industries such as food and beverage and power generation. Its durable construction and design make it reliable for electrical installations.
Product Information
Standard Information
-
Brand Name: Thomas & Betts
-
MPN: E986H
Technical Specifications
-
Type: Rectangular with Cover
-
Conduit Body Style: Type LB
-
Material: PVC
-
Finish: Gray
-
Trade Size: 1-1/2 Inch
-
Number of Hubs: 2
-
Hub Placement: 90 Degree
-
Connection Type: Threadless
-
Capacity: 32 Cubic Inch
-
Dimensions: 7-31/32 Inch Length x 2-1/2 Inch Width x 2-3/4 Inch Height
-
For Use With: Schedule 40 and Schedule 80 Rigid Conduit
-
Access: Back Side
-
Standards: UL E42728, E11461 Listed, CSA Certified, RoHS Compliant
-
UNSPSC: 39131708
