Thomas And Betts 54910BE Copper One-Hole Lug

Product Description

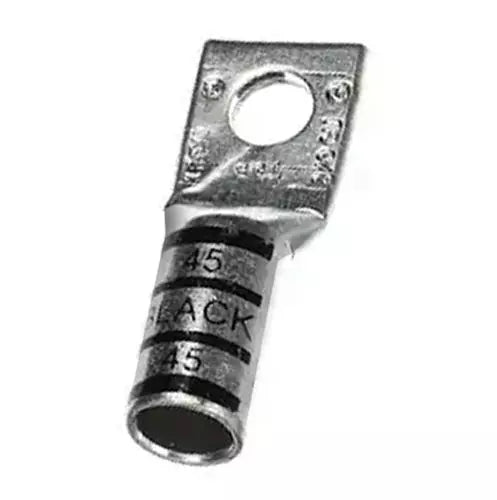

The Thomas & Betts 54910BE is a copper one-hole lug made for compression connections. This product is designed to work with 2/0 AWG stranded copper conductors. It features a long barrel and a blind end, ensuring a secure fit for electrical connections. The lug is tin-plated to resist corrosion and accommodate a 3/8 inch bolt, making it a dependable choice for various applications.

• Designed for 2/0 AWG stranded copper conductors.
• Long barrel with a blind end for secure connections.
• Tin-plated finish for enhanced durability.

Product Highlights

This lug is part of the Color-Keyed system, which simplifies the selection of components for electrical systems. It has a black color code and a die code of 45 for easy identification.

Product Information

Standard Information

• Brand: Thomas & Betts
• MPN: 54910BE

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 2/0
• Cable Size: 2/0 AWG
• Stud Size: 3/8
• Bolt Hole: 3/8 inches
• Number of Holes: 1
• Voltage Rating: 600 VAC to 35 kV
• Material: Copper
• Finish: Tin Plated
• Color: Black
• Die Code: 45
• Barrel Length: Long
• Tongue Angle: Straight
• Lug Type: 1-Hole
• Sub Brand: Color-Keyed
• Standard: UL E9809
• Country of Origin: MX
