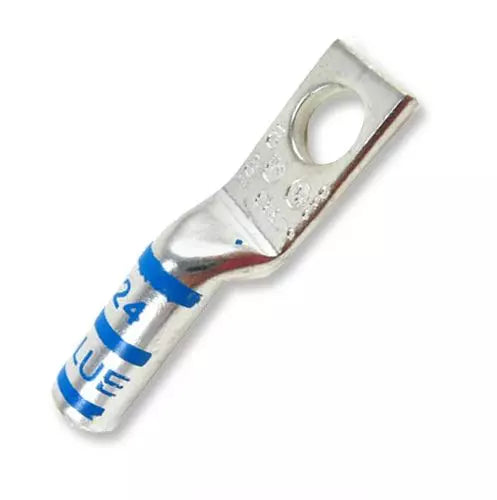

Thomas And Betts 54905BE Copper One-Hole Lug

Product Description

The Thomas & Betts 54905BE is a copper one-hole compression lug designed for industrial applications. It fits #6 AWG stranded copper conductors and uses a 1/4 bolt. Made from high-conductivity wrought copper and tin-plated, this lug ensures corrosion resistance. The Color-Keyed system assists in accurate crimping by matching the connector to the appropriate tool and die. It is suitable for voltage ratings from 600 VAC to 35 kV.

• Designed for #6 AWG wire and uses a 1/4 bolt.
• Features a tin-plated finish for corrosion resistance.
• Utilizes the Color-Keyed system for accurate compression.

Product Highlights

This lug has a straight barrel for reliable performance in demanding tasks. It is essential for maintaining strong electrical connections in challenging environments.

Product Information

Standard Information

• Brand Name: Thomas & Betts
• MPN: 54905BE

Technical Specifications

• Material: Copper
• Conductor Size: #6 AWG
• Stud Size: 1/4
• Voltage Rating: 600 VAC to 35 kV
• Plating: Tin
• Color: Blue
• Die Code: 24
• Standard: UL E9809
