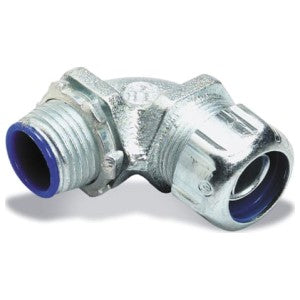

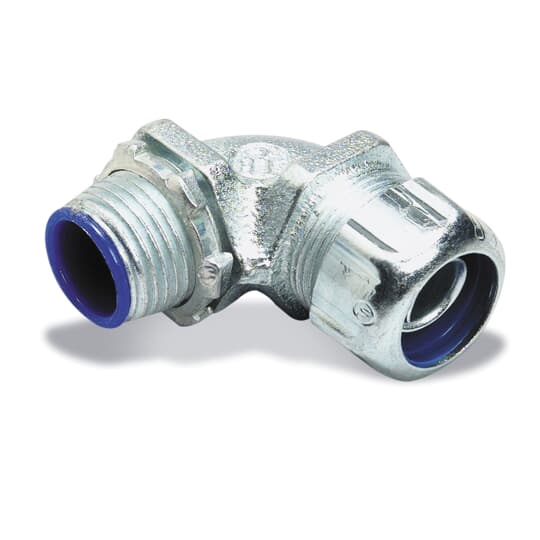

Thomas and Betts 5253 Liquidtight Conduit Connector, 3/4 Inch, 90 Degree

Product Description

The Thomas and Betts 5253 is a liquidtight conduit connector suitable for connecting three-quarter inch flexible metallic conduit to an enclosure or junction box. With a 90-degree design, this connector is made from malleable iron, ensuring durability and a secure seal in environments with moisture.

• Constructed from malleable iron for durability.
• Provides a liquidtight connection for flexible metallic conduit.
• Designed for use in both indoor and outdoor environments.

Product Highlights

This conduit connector is ideal for installations where flexible metal raceways are exposed to moisture, making it a reliable choice for electricians and contractors.

Product Information

Standard Information

• Brand: Thomas and Betts
• MPN: 5253

Technical Specifications

• Material: Malleable iron
• Trade Size: 3/4 inch
• Angle: 90 degrees
• Application: For use where flexible metal raceway is installed in moist conditions
• Finish: Electro-plated zinc/chromate
• Standards/Approvals: CSA Certified, UL E23018
• Dimensions: 1-3/4 inches long x 1-21/32 inches wide
• Type: Non-insulated
