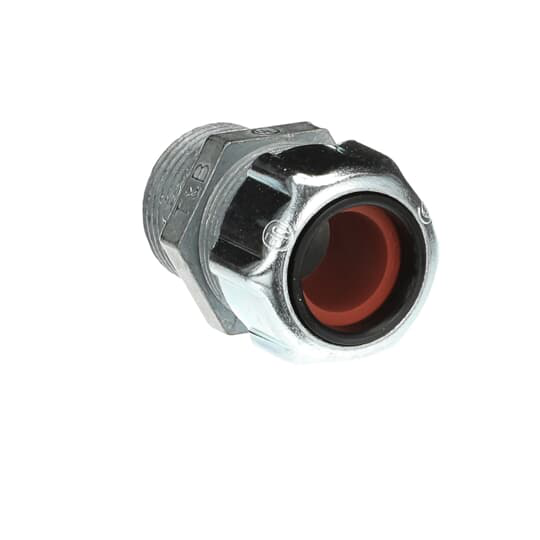

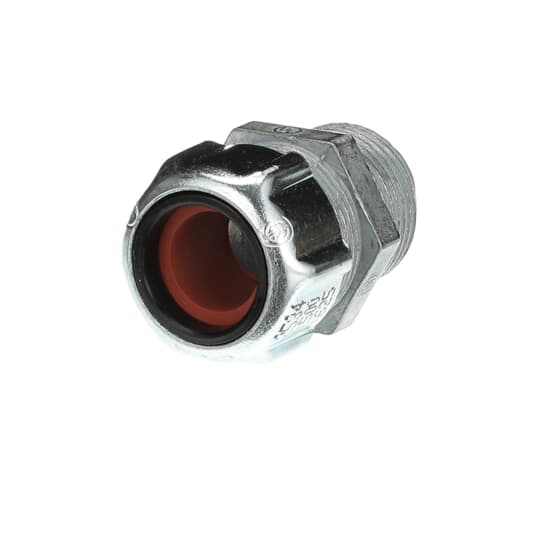

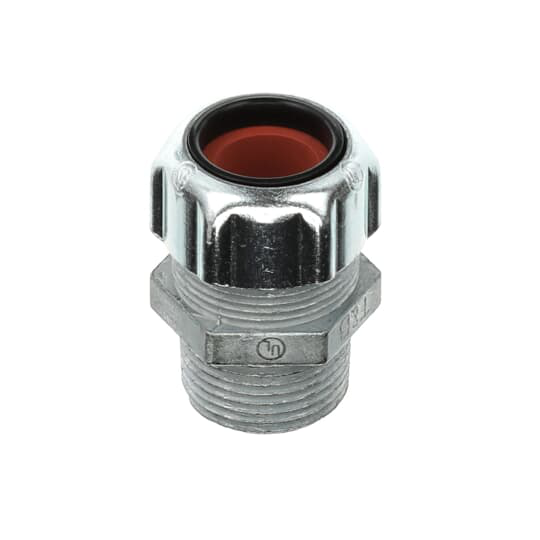

THOMAS AND BETTS 2534 Liquidtight Strain Relief Cord Connector

Product Description

The Thomas and Betts 2534 is a liquidtight strain relief cord connector. It connects flexible cord or power cable to an enclosure. The connector is made from die-cast zinc, ensuring a secure installation. It allows a cord or cable to pass into an enclosure, providing a mechanical grip and a water- and oil-resistant seal. This connector is compatible with various cable types including S, SO, SV, and others.

• Provides strain relief for flexible cord and cable.
• Forms a mechanical grip with a liquidtight seal.
• Suitable for hazardous locations.

Product Highlights

This connector is designed for durability and reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer Part Number: 2534
• Product Type: Strain Relief Cord Connectors-Straight

Technical Specifications

• Thread Size: 1/4 NPT
• Cable Diameter Min: 12.7mm
• Cable Diameter Max: 15.88mm
• Material: Die-Cast Zinc
• Temperature Rating: 105 degrees Celsius
• Application: Suitable for use in hazardous locations
• Gland Colour: Metallic
• UPC: 78621002534
