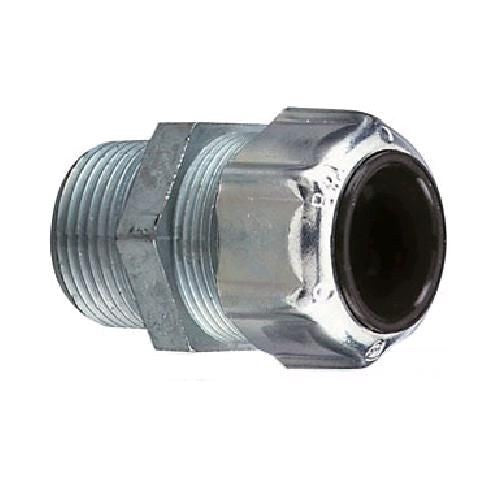

THOMAS AND BETTS 2521 Ranger Liquidtight Strain Relief Cord Connector

Product Description

The Thomas and Betts 2521 is a Ranger liquidtight strain relief cord connector. This connector is ideal for connecting flexible cord or power cable to a box or enclosure while providing strain relief. The straight design accommodates cable openings from one-quarter to three-eighths inches and features a half-inch trade size. The construction uses die-cast zinc with zinc plating and includes a neoprene bushing.

• Connects flexible cord or power cable to an enclosure.
• Provides strain relief for liquidtight applications.
• Constructed from die-cast zinc with zinc plating.

Product Highlights

This connector is suited for applications requiring a liquidtight seal and is used in various environments.

Product Information

Standard Information

• Brand: THOMAS AND BETTS
• MPN: 2521

Technical Specifications

• Material: Die Cast Zinc
• Finish: Zinc Plated
• Trade Size: 1/2 in
• Cable Openings: 1/4 - 3/8 in
• Cable Diameter Min: 0.25
• Cable Diameter Max: 0.375
• Connection Type: Threaded
• Temperature Rating: 105 deg C
• Thread Size: 1/2 NPT
• Dimensions: 1-5/32 in Dia x 1-11/16 in L
• Standard & Approvals: UL E13938 Listed, CSA Certified, UL 514B, CSA C22.2 No. 18.3, NFPA 70-2008 (ANSI), RoHs Compliant
