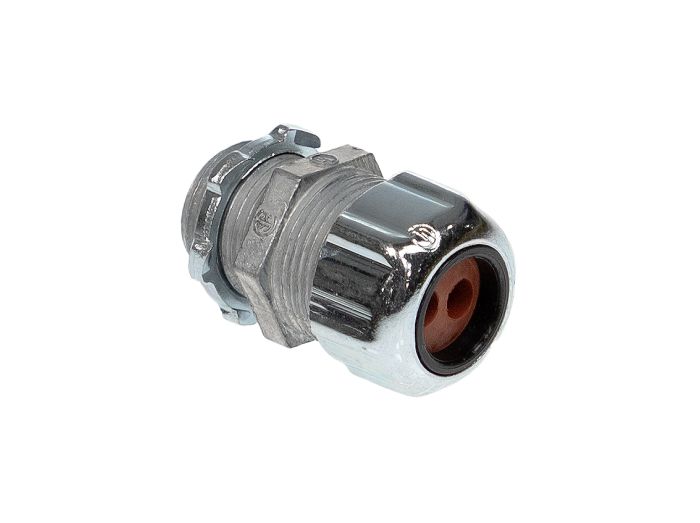

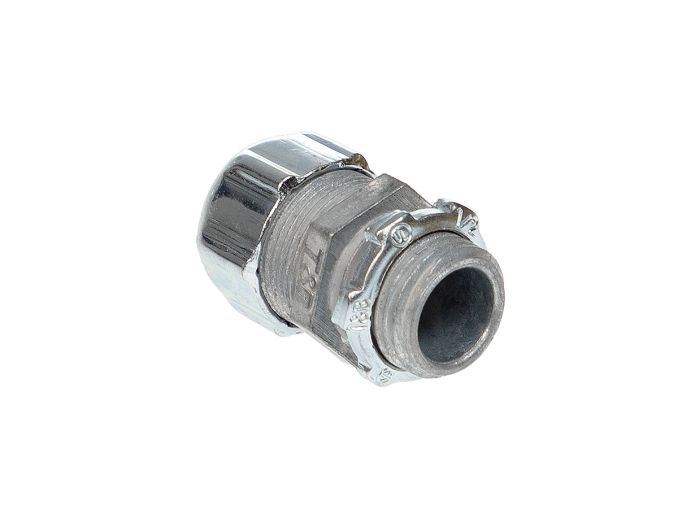

THOMAS AND BETTS 2520 Ranger Strain Relief Straight Liquidtight Cord Connector

Product Description

The Thomas and Betts 2520 Ranger Strain Relief Straight Liquidtight Cord Connector allows for secure connections of flexible cords and cables. It features a trade size of one half inch and supports cable openings ranging from one eighth inch to one fourth inch. With construction from die-cast zinc and a zinc-plated finish, this connector ensures a liquidtight seal while providing strain relief. It is compliant with NEC 501-4(B) for use in hazardous locations.

• Trade size is one half inch.
• Accommodates cable openings from one eighth inch to one fourth inch.
• Constructed of die-cast zinc with zinc plating.

Product Highlights

This cord connector is ideal for flexible cord applications needing strain relief and protection.

Product Information

Standard Information

• Category Level 1: Fittings & Connectors
• Category Level 2: Flexible Cord & Cable Fittings

Technical Specifications

• Application: For hazardous locations where general purpose equipment is permitted by NEC 501-4(B)
• Cable Openings: 1/8 to 1/4 inches
• Material: Die Cast Zinc
• Dimensions: 1-5/32 inches diameter x 1-11/16 inches long
• Connection Type: Threaded
• Temperature Rating: 105 degrees Celsius
• Trade Size: 1/2 inch
• Standard/Approvals: UL 514B, CSA C22.2 No. 18.3, NFPA 70-2008 (ANSI)
