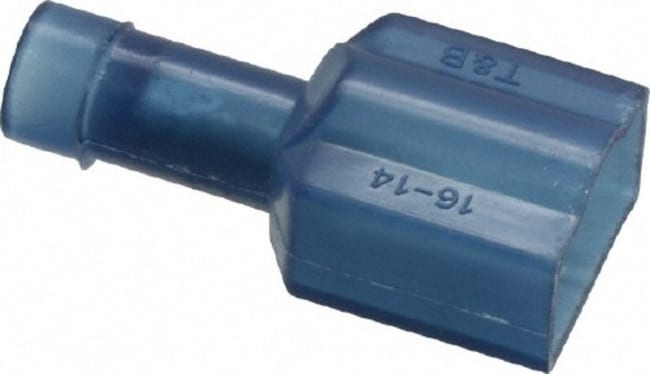

THOMAS AND BETTS 14RB-251T Male Wire Disconnect 16-14 AWG

Product Description

The Thomas and Betts 14RB-251T is a male wire disconnect terminal for secure electrical connections. It is suitable for wire sizes from sixteen to fourteen AWG. This terminal features a tab size of 1/4 by 1/32 inches for easy mating with female connectors. The construction includes a nylon insulation for safety and a brass contact for reliable performance.

• Wire range suitable for 16-14 AWG
• Tab size of 0.250 x 0.032 inches
• Insulation made from durable nylon

Product Highlights

This male disconnect terminal is designed for quick installations and is compatible with crimp tools. The nylon insulator and brass body ensure longevity and performance in various applications.

Product Information

Standard Information

• Manufacturer Part Number: 14RB-251T
• Product Series: RB

Technical Specifications

• Terminal Type: Male Quick Disconnect
• Wire Size Range: 16-14 AWG
• Insulated: Yes
• Insulation Material: Nylon
• Color: Blue
• Material: Brass
• Plating Material: Tin
• Maximum Temperature: 221 °F
• Approvals: CSA, UL
• Flammability Rating: UL94V-0
• Voltage Rating: 300V
