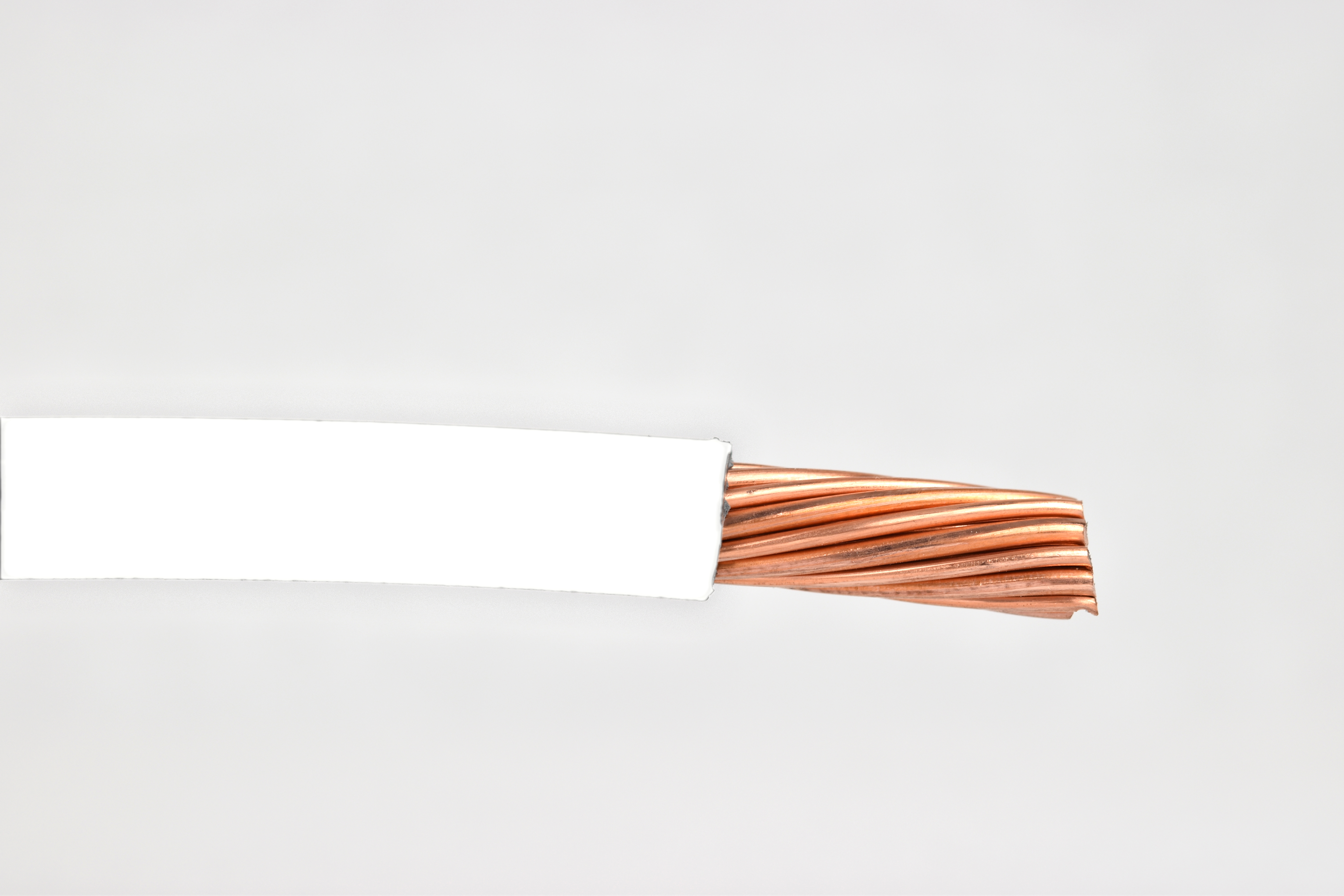

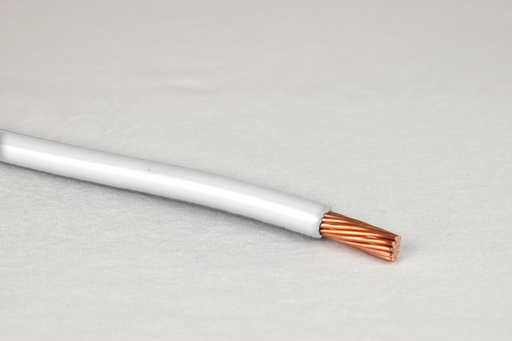

THHNCU-GENERIC THHN8STRWHT1000R 8 AWG White Stranded Copper Wire

Product Description

The THHNCU-GENERIC THHN8STRWHT1000R is an 8 AWG stranded copper wire designed for durability and reliability. This product features thermoplastic insulation with a nylon sheath, making it suitable for various applications, including use in wet locations. It has a voltage rating of six hundred volts and is available on a one thousand foot reel.

• 8 AWG stranded copper conductor
• Thermoplastic insulation with nylon sheath
• Rated for use in wet locations

Product Highlights

Ideal for electrical installations, this wire combines high resistance to heat, moisture, gasoline, and oil.

Product Information

Standard Information

• Brand: Generic Wire
• MPN: THHN8STRWHT1000R

Technical Specifications

• Type: THHN
• Material: Soft Annealed Copper
• Size: 8 AWG
• Stranding: 19 Strands
• Color: White
• Length: 1000 feet
• Voltage Rating: 600 V
• Current Rating: 40 Ampere (60 Deg C), 50 Ampere (75 Deg C), 55 Ampere (90 Deg C)
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Oil/Wet)
• Insulation Material: PVC
• Jacket Material: Nylon
• Outer Diameter: 213 MIL
• Insulation Thickness: 30 MIL
• Jacket Thickness: 5 MIL
• Wet Location Use: Yes
• Direct Burial: No
• Shielded: No
• Grounded: No
• Approval: UL (Canada and US)
• UNSPSC: 26121614
