THHNCU-GENERIC THHN8STRGRN1000R 8 AWG (1000' REEL)

Product Description

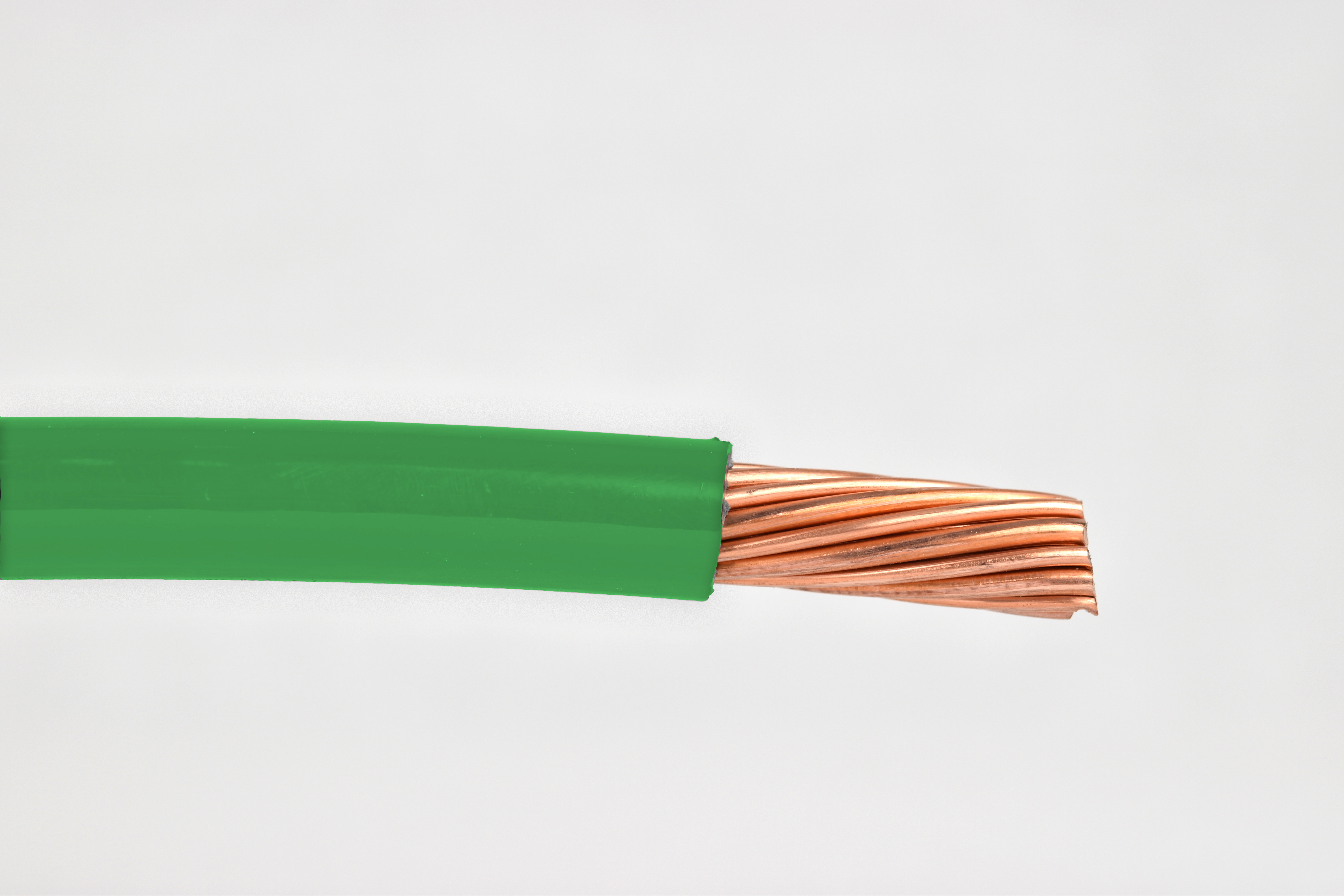

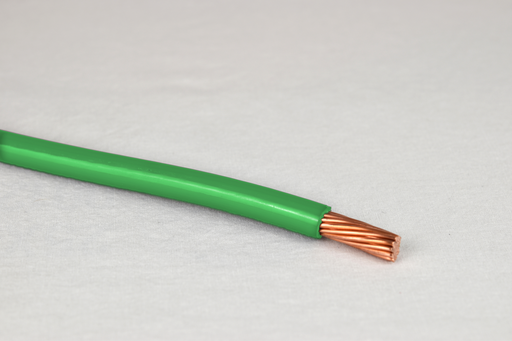

The THHNCU-GENERIC THHN8STRGRN1000R is an eight American Wire Gauge (AWG) stranded wire for electrical applications. It features a green thermoplastic insulation and durable nylon jacket, providing protection and flexibility. This wire consists of nineteen strands of soft annealed copper, making it suitable for various electrical tasks, particularly in wet locations.

• Rated for up to 600 volts
• Suitable for wet location use
• Available in 1000 foot reels

Product Highlights

This wire is designed for installation where moisture may be present. Its insulation withstands high temperatures, making it reliable for electrical systems.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• MPN: THHN8STRGRN1000R

Technical Specifications

• Type: THHN
• Material: Soft Annealed Copper
• Stranding: 19 Strands
• Wire Size: 8 AWG
• Length: 1000 feet
• Voltage Rating: 600 V
• Current Rating: 40 A (60 Deg C), 50 A (75 Deg C), 55 A (90 Deg C)
• Insulation Material: PVC
• Jacket Material: Nylon
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Oil/Wet)
• Outer Diameter: 213 MIL
• Insulation Thickness: 30 MIL
• Jacket Thickness: 5 MIL
• Wet Location Use: Yes
• Direct Burial: No
• Shielded: No
• Grounded: No
• Approval: UL (Canada and US)
• UNSPSC: 26121614
