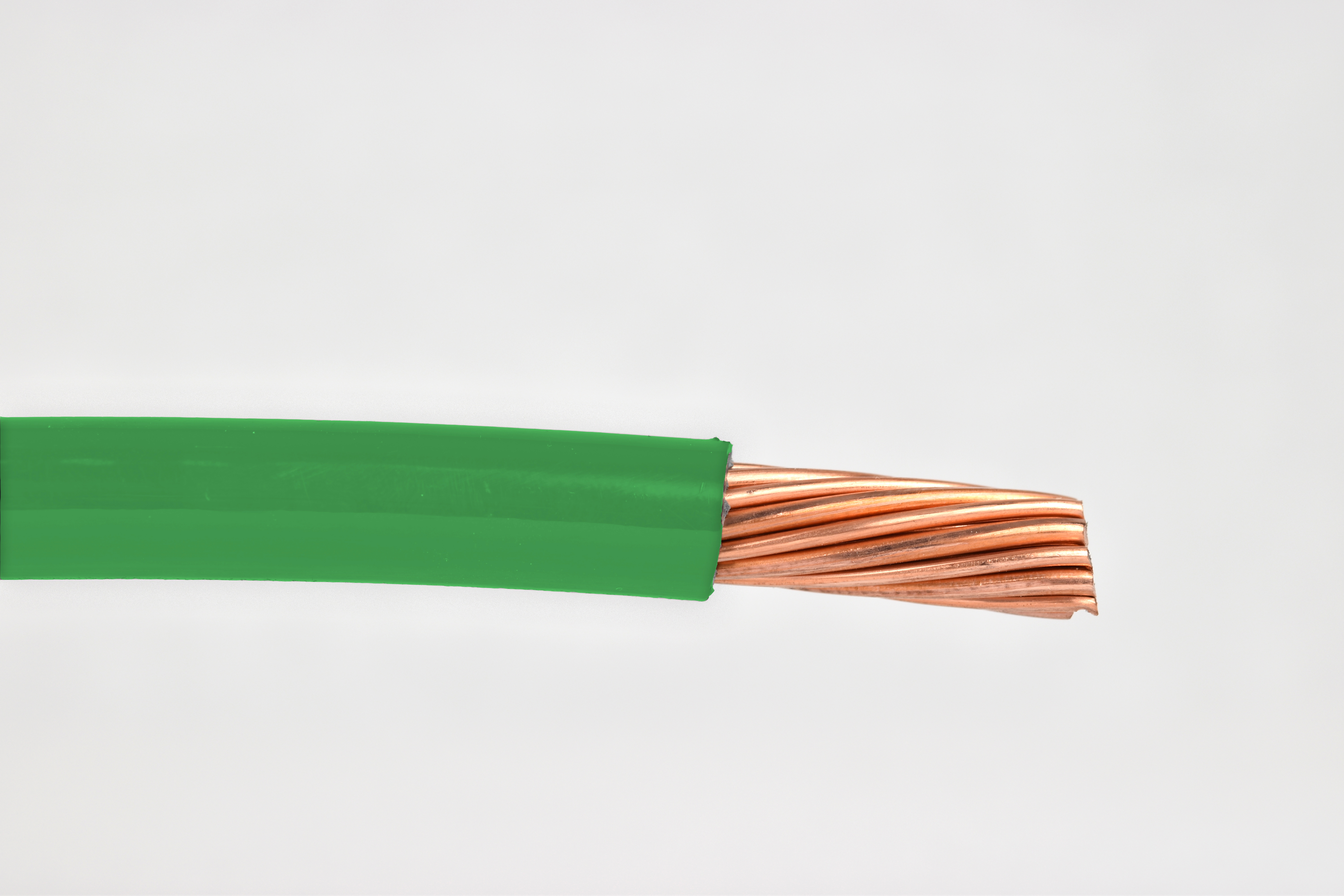

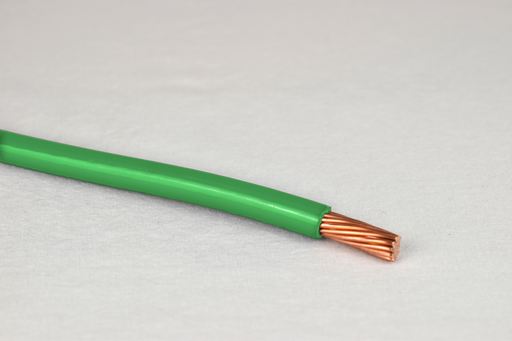

THHNCU-GENERIC THHN8STRBRN1000R 8 AWG Stranded Copper Wire

Product Description

The THHNCU-GENERIC THHN8STRBRN1000R is an eight AWG stranded copper wire designed for various electrical applications. It features a green PVC insulation and a protective nylon jacket. This wire is constructed from nineteen strands of soft annealed copper for flexibility and durability. Rated for six hundred volts, it is suitable for wet locations. This product is supplied on a one thousand-foot reel and is engineered to withstand heat, moisture, gasoline, and oil.

• Eight AWG stranded copper conductor.
• PVC insulation and nylon jacket enhance durability.
• Rated for six hundred volts and suitable for wet conditions.

Product Highlights

Designed for reliable electrical performance, this wire is ideal for use in residential, commercial, and industrial settings.

Product Information

Standard Information

• Brand: Generic Wire
• Type: THHN

Technical Specifications

• Material: Soft Annealed Copper
• Stranding: 19 Strands
• Size: 8 AWG
• Length: 1000 feet
• Color: Green
• Voltage Rating: 600 V
• Current Rating: 40 Ampere (60 Deg C), 50 Ampere (75 Deg C), 55 Ampere (90 Deg C)
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Oil/Wet)
• Insulation Material: PVC
• Jacket Material: Nylon
• Outer Diameter: 213 MIL
• Insulation Thickness: 30 MIL
• Jacket Thickness: 5 MIL
• Direct Burial: No
• Shielded: No
• Grounded: No
• Wet Location Use: Yes
• Approval: UL (Canada and US)
• UNSPSC: 26121614
