THHNCU-GENERIC THHN8STRBLU1000R 8 AWG Copper Building Wire

Product Description

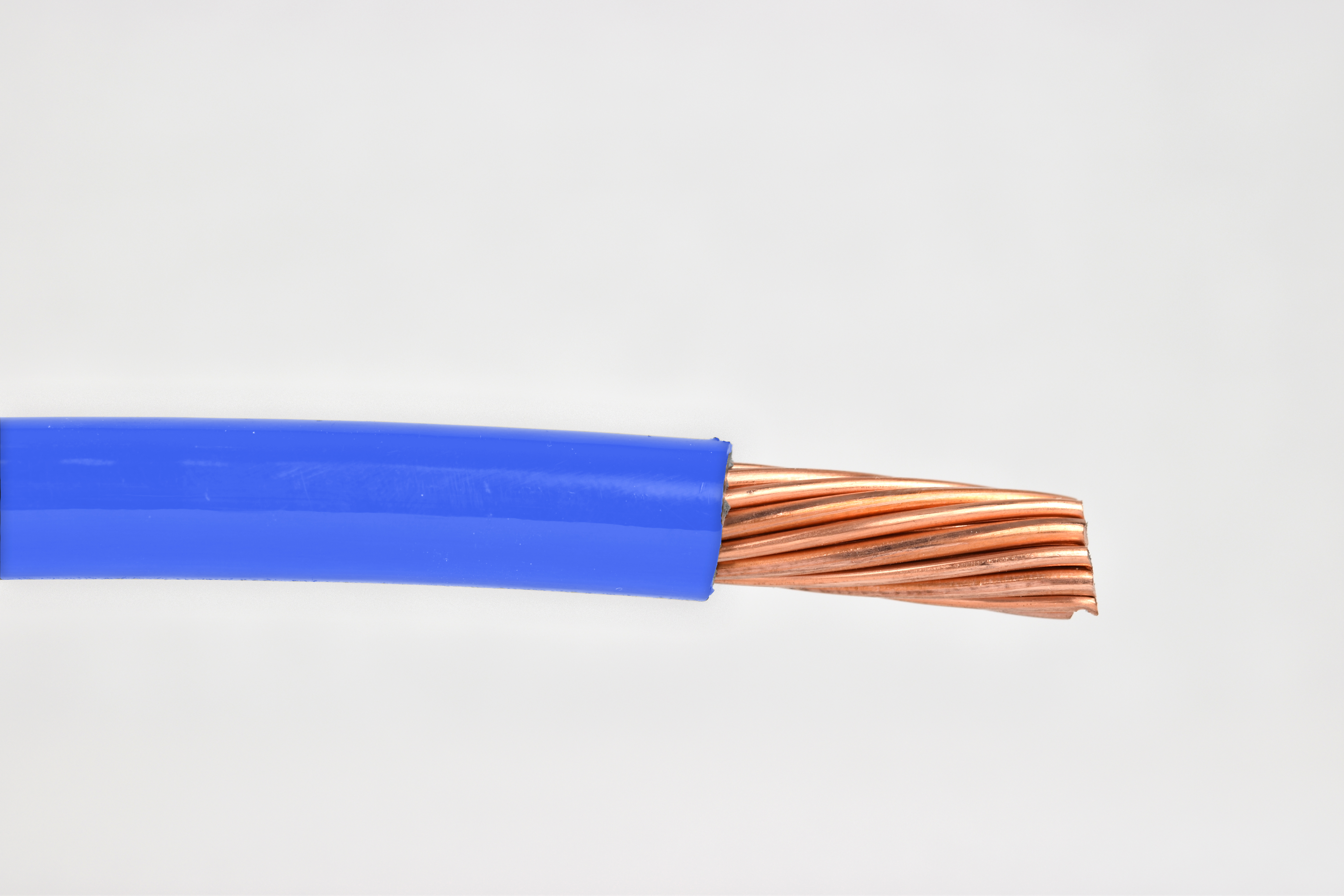

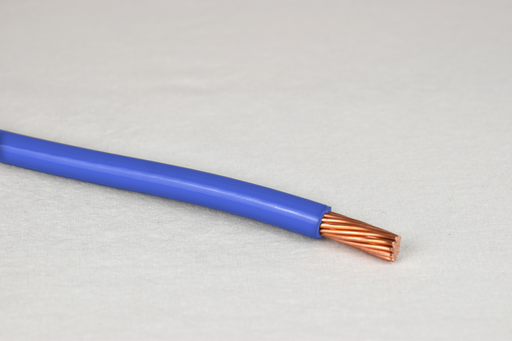

The THHNCU-GENERIC THHN8STRBLU1000R is a THHN copper building wire measuring 8 AWG. This wire consists of 19 strands of soft annealed copper, offering flexibility and durability. The insulation is made of PVC, and it is protected by a nylon jacket, making it suitable for use in wet locations. The wire has a voltage rating of 600 volts and comes in a 1000-foot reel.

• 8 AWG size with 19 strands of copper
• Rated for wet locations with a voltage of 600V
• Includes a PVC insulation and nylon jacket for added protection

Product Highlights

THHNCU-GENERIC THHN8STRBLU1000R wire is ideal for various electrical installations, especially in environments where exposure to moisture is a concern.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• Type: THHN

Technical Specifications

• Wire Size: 8 AWG
• Stranding: 19
• Conductor Material: Soft Annealed Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Color: Blue
• Length: 1000 feet
• Voltage Rating: 600 volts
• Current Rating: 40 Ampere (60 Deg C), 50 Ampere (75 Deg C), 55 Ampere (90 Deg C)
• Temperature Rating: 90 Degrees Celsius
• Wet Location Use: Yes
• Outer Diameter: 0.213 inches
• Insulation Thickness: 0.030 inches
• Jacket Thickness: 0.005 inches
• MPN: THHN-8-STR19-BLU-CU-1000R
• Standard: UL (Canada and US)
