THHNCU-GENERIC THHN6STRYEL500R, 6 AWG, 500' Spool, Yellow

Product Description

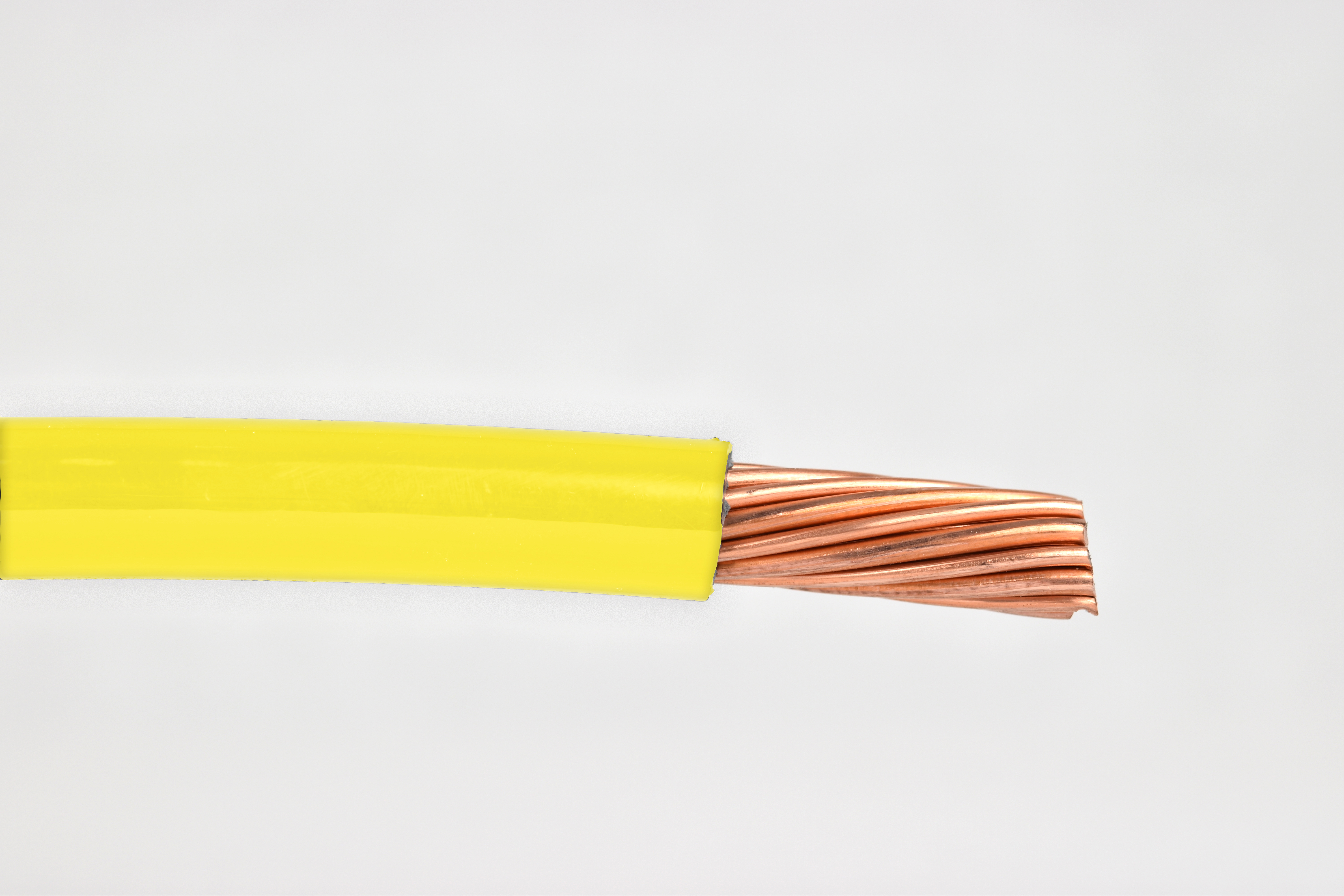

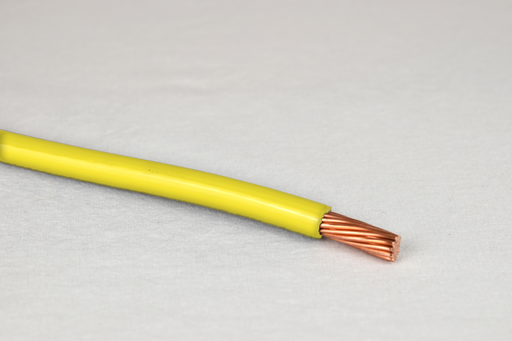

The THHNCU-GENERIC THHN6STRYEL500R is a six American wire gauge (AWG) THHN wire on a five hundred-foot spool, designed for versatile applications. This wire features a soft annealed copper conductor that helps ensure conductivity and longevity. The insulation is made from PVC, providing resistance to heat, moisture, and oils, while the nylon jacket adds extra protection against mechanical wear.

• Soft annealed copper conductor
• Suitable for wet locations
• Rated for 600 volts

Product Highlights

Product Information

Standard Information

• MPN: THHN6STRYEL500R
• Brand: THHNCU-GENERIC

Technical Specifications

• Type: THHN
• Size: 6 AWG
• Stranding: 19 Strands
• Color: Yellow
• Material: Soft Annealed Copper
• Length: 500 feet
• Voltage Rating: 600 V
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Oil/Wet)
• Current Rating: 55 Ampere (60 Deg C), 65 Ampere (75 Deg C), 75 Ampere (90 Deg C)
• Jacket Material: Nylon
• Insulation Material: PVC
• Wet Location Use: Yes
• Direct Burial: No
• Shielded: No
• Grounded: No
• Outer Diameter: 249 MIL
• Insulation Thickness: 30 MIL
• Jacket Thickness: 5 MIL
• Approval: UL (Canada and US)
