THHNCU-GENERIC THHN6STRWHT500R 6 AWG White Stranded Copper Wire

Product Description

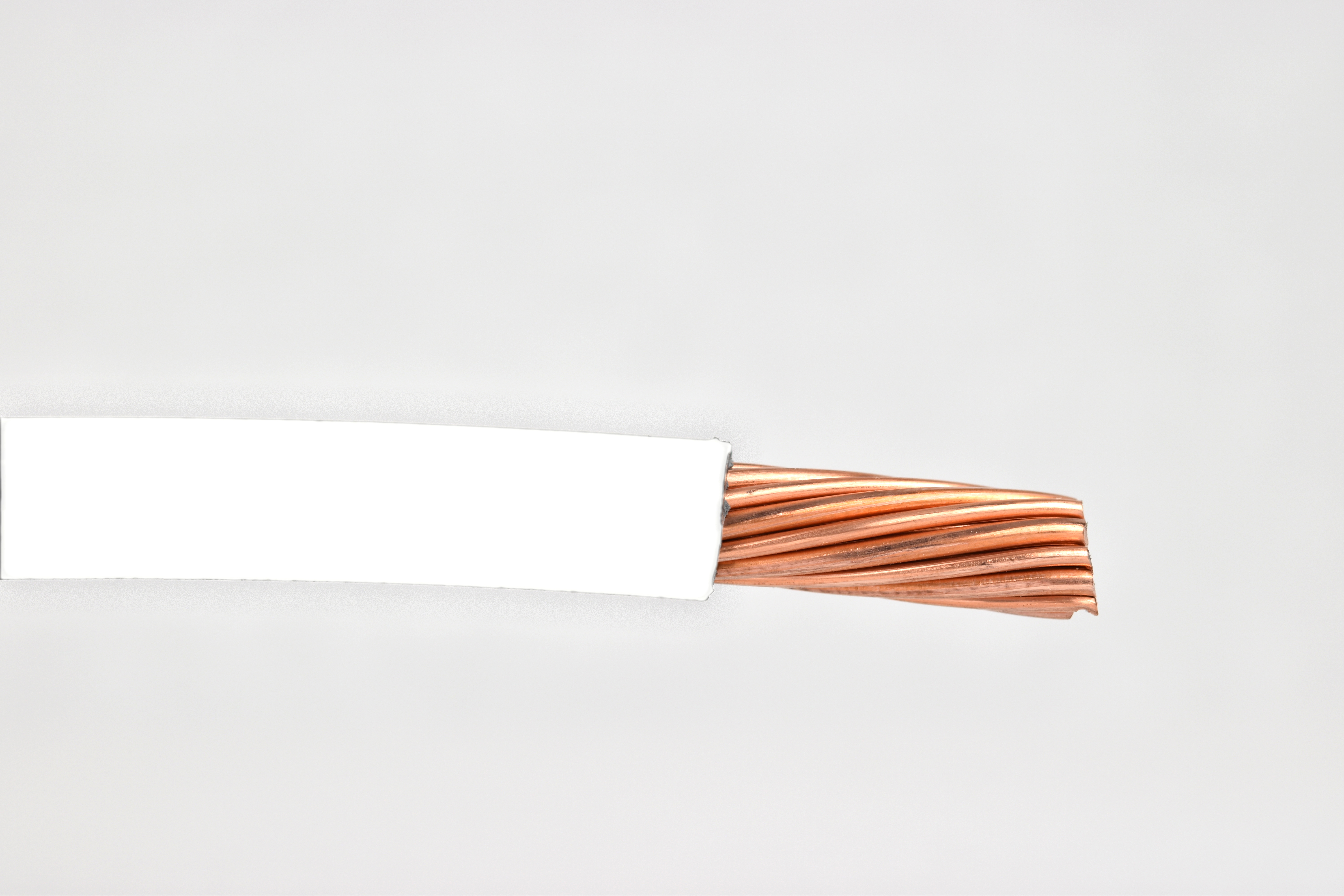

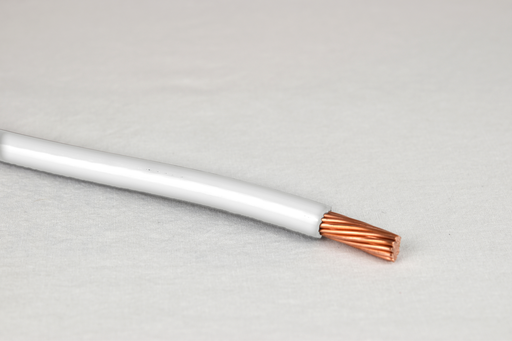

The THHNCU-GENERIC THHN6STRWHT500R is a six American wire gauge stranded copper wire. This wire features a thermoplastic insulated coating with a nylon sheath. It is made with nineteen strands of soft annealed copper and comes on a five hundred foot spool.

• Six AWG stranded copper conductor.
• Features PVC insulation and a nylon jacket.
• Rated for six hundred volts.

Product Highlights

This stranded copper wire is suitable for wet locations and is ideal for various electrical applications.

Product Information

Standard Information

• Brand: Generic Wire
• MPN: THHN6STRWHT500R

Technical Specifications

• Type: THHN
• Wire Size: 6 AWG
• Stranding: 19 Strands
• Conductor Material: Soft Annealed Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Length: 500 feet
• Voltage Rating: 600 V
• Current Rating: 55 Ampere (60 Deg C), 65 Ampere (75 Deg C), 75 Ampere (90 Deg C)
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Oil/Wet)
• Outer Diameter: 249 MIL
• Insulation Thickness: 30 MIL
• Jacket Thickness: 5 MIL
• Wet Location Use: Yes
• Direct Burial: No
• Shielded: No
• Grounded: No
• Approval: UL (Canada and US)
• UNSPSC: 26121614
