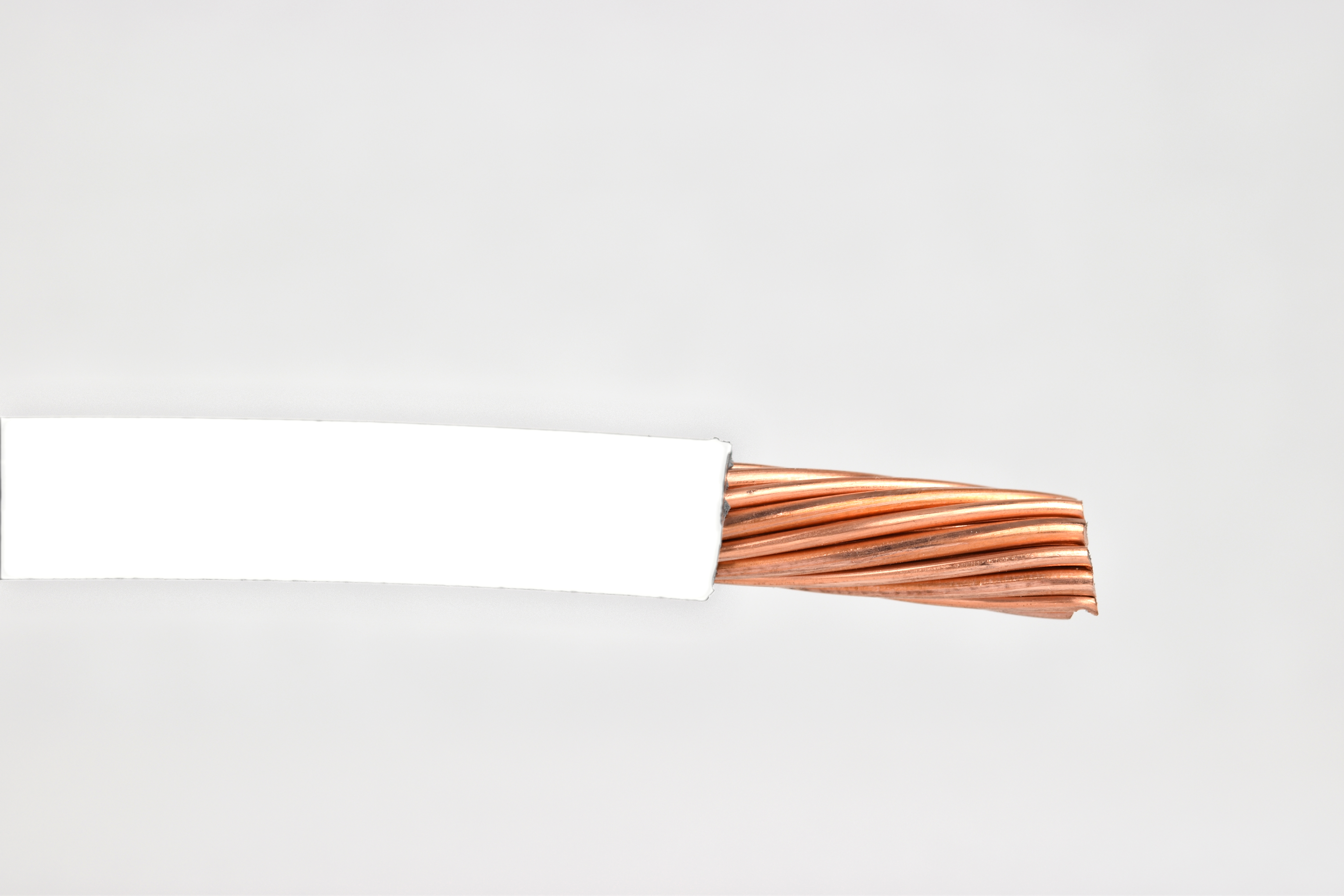

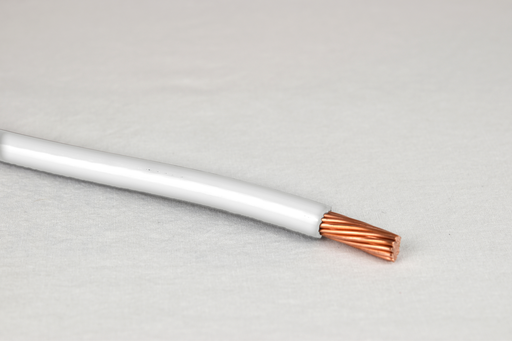

THHNCU-GENERIC THHN6STRWHT1000R 6 AWG White Stranded Copper Wire

Product Description

The THHNCU-GENERIC THHN6STRWHT1000R is a six AWG stranded copper wire designed for electrical applications. It features a white PVC insulation and a durable nylon jacket which makes it suitable for various environments. Properly rated for six hundred volts, this wire is resistant to heat, moisture, gasoline, and oil. The wire is available on a one thousand-foot reel, ideal for extensive installation projects.

• Six AWG stranded soft annealed copper conductor.
• Insulation made of PVC and jacketed with nylon.
• Approved for THHN, MTW, and THWN-2 applications.

Product Highlights

This wire's construction provides reliable conductivity and strength while ensuring protection against environmental factors. It is widely used in conduit and cable trays for services, feeders, and branch circuits.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• MPN: THHN6STRWHT1000R

Technical Specifications

• Type: THHN
• Wire Size: 6 AWG
• Stranding: 19 Strands
• Conductor Material: Soft Annealed Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Color: White
• Length: 1000 feet
• Voltage Rating: 600 V
• Current Rating: 55 Ampere (60 Deg C), 65 Ampere (75 Deg C), 75 Ampere (90 Deg C)
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Oil/Wet)
• Outer Diameter: 249 MIL
• Insulation Thickness: 30 MIL
• Jacket Thickness: 5 MIL
• Wet Location Use: Yes
• Direct Burial: No
• Shielded: No
• Grounded: No
• Approval: UL (Canada and US)
• UNSPSC: 26121614
