THHNCU-GENERIC THHN6STRRED1000R 6 AWG Stranded Copper Building Wire

Product Description

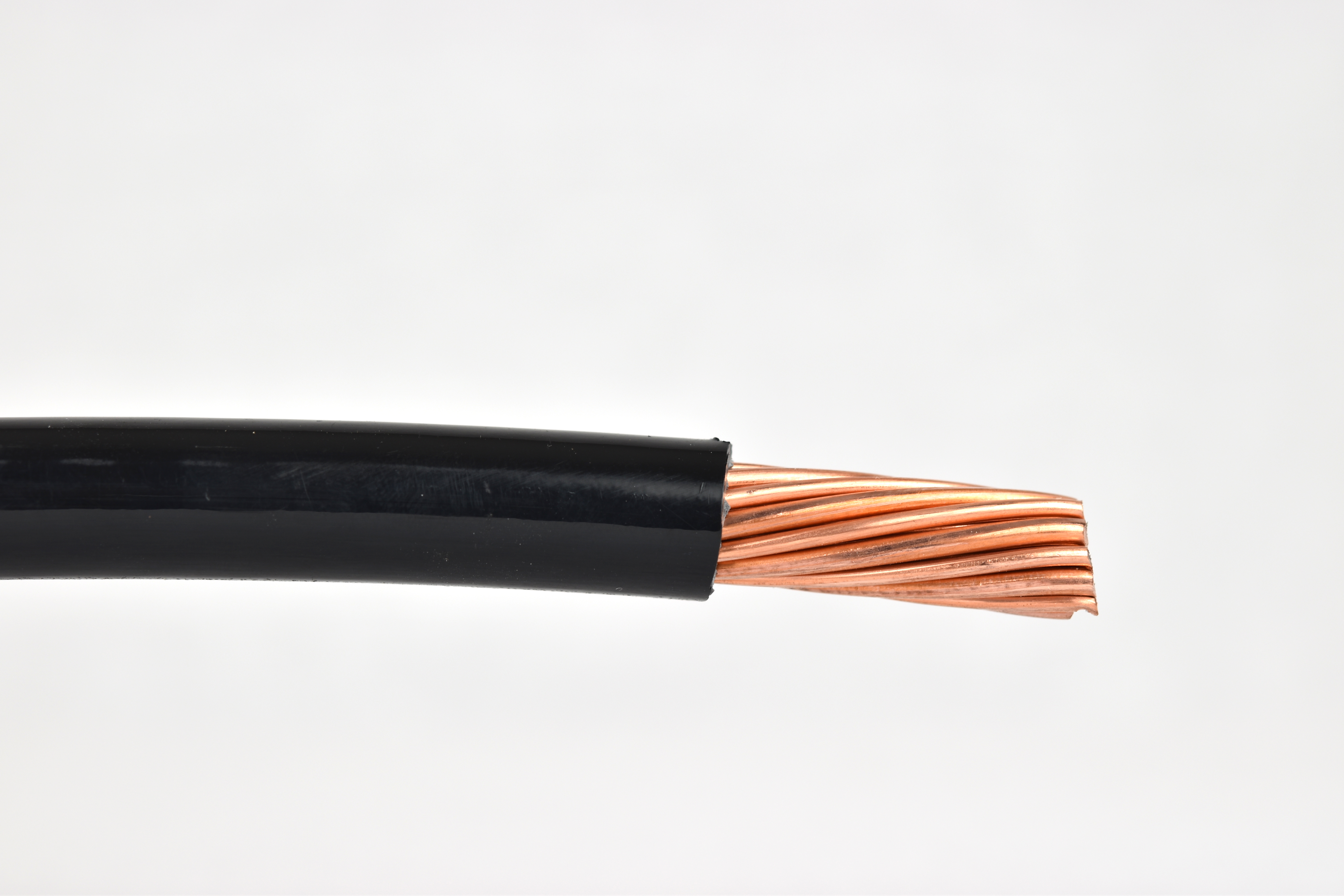

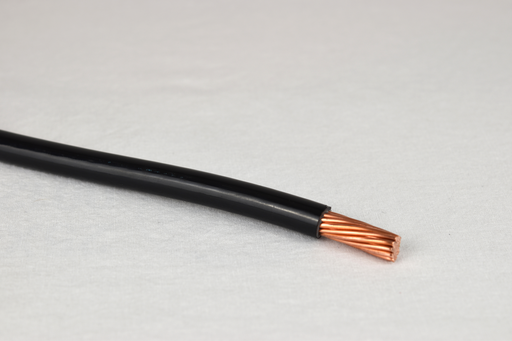

The THHNCU-GENERIC THHN6STRRED1000R is a six American wire gauge stranded copper building wire. This wire features a soft annealed copper conductor with thermoplastic insulation and is protected by a nylon jacket. It is rated for use in wet locations and offers resistance to heat, moisture, gasoline, and oil. The wire has a voltage rating of six hundred volts and comes on a one thousand foot reel.

• 6 AWG stranded soft annealed copper conductor
• Thermoplastic insulation with nylon sheath
• Rated for 600V, suitable for wet locations

Product Highlights

Ideal for various electrical installations where durability and safety are essential.

Product Information

Standard Information

• Brand: Generic Wire
• MPN: THHN6STRRED1000R

Technical Specifications

• Type: THHN
• Material: Soft Annealed Copper
• Size: 6 AWG
• Stranding: 19 Strands
• Length: 1000 feet
• Voltage Rating: 600 V
• Current Rating: 55 Amperes (60 Deg C), 65 Amperes (75 Deg C), 75 Amperes (90 Deg C)
• Insulation Material: PVC
• Jacket Material: Nylon
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Oil/Wet)
• Wet Location Use: Yes
• Jacket Thickness: 5 MIL
• Insulation Thickness: 30 MIL
• Outer Diameter: 249 MIL
• Approval: UL (Canada and US)
• UNSPSC: 26121614
