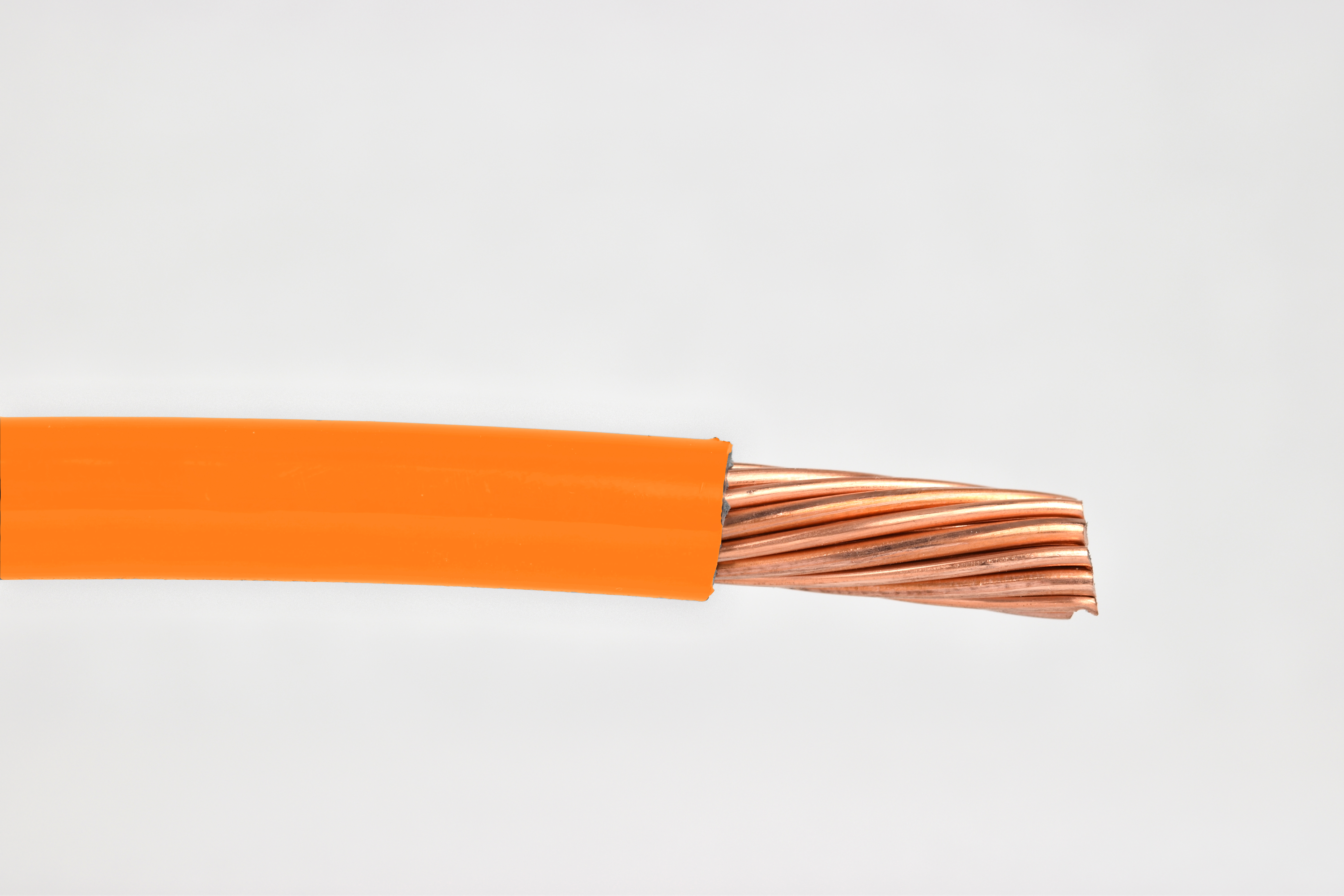

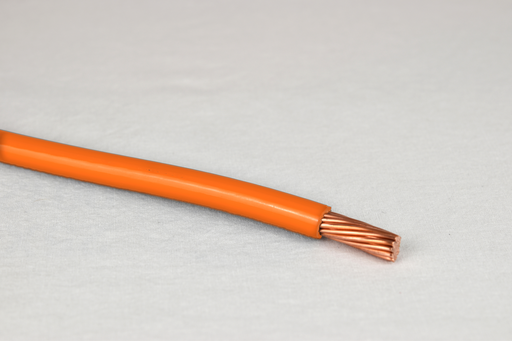

THHNCU-GENERIC THHN6STRORG500R 6 AWG Orange Stranded Copper Wire

Product Description

The THHNCU-GENERIC THHN6STRORG500R is a six AWG stranded copper wire suitable for various electrical applications. This wire features a soft annealed copper conductor, thermoplastic insulation, and a nylon jacket for improved durability. Ideal for use in conduit and cable trays, it is appropriate for services, feeders, and branch circuits. The wire operates at a voltage rating of six hundred volts and is designed to withstand exposure to heat, moisture, gasoline, and oil.

• Rated for six hundred volts
• Resistant to heat and moisture
• UL approved for wet locations

Product Highlights

This wire is suitable for diverse wiring needs, providing reliability and strong performance for electrical systems.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• MPN: THHN6STRORG500R

Technical Specifications

• Wire Size: 6 AWG
• Stranding: 19 Strands
• Color: Orange
• Material: Soft Annealed Copper
• Length: 500 feet
• Type: THHN
• Voltage Rating: 600 V
• Jacket Material: Nylon
• Insulation Material: PVC
• Temperature Rating: 90 Degrees Celsius
• Current Rating: 55 Ampere (60 Deg C), 65 Ampere (75 Deg C), 75 Ampere (90 Deg C)
• Wet Location Use: Yes
• Direct Burial: No
• Shielded: No
• Grounded: No
• Approval: UL (Canada and US)
• Outer Diameter: 0.249 inches
• Insulation Thickness: 0.030 inches
• Jacket Thickness: 0.005 inches
• UNSPSC: 26121614
