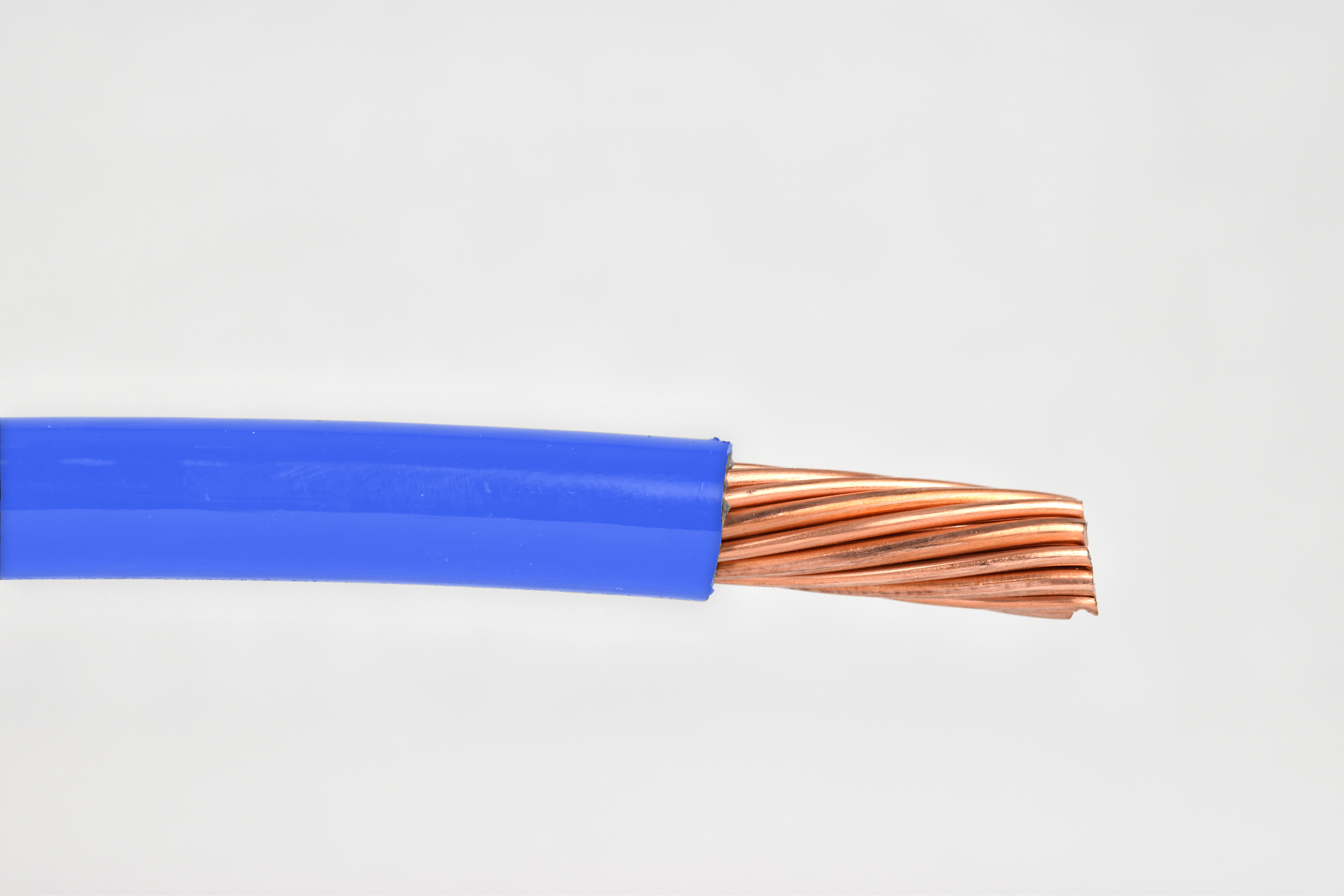

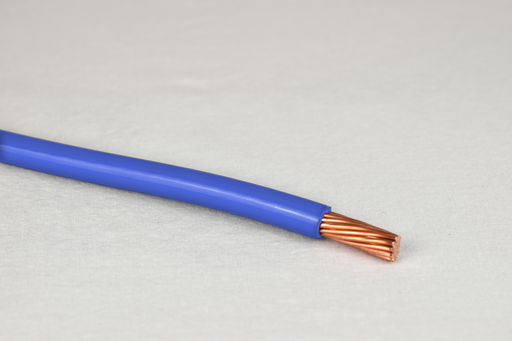

THHNCU-GENERIC THHN6STRBLU500R 6 AWG Stranded Copper Wire

Product Description

The THHNCU-GENERIC THHN6STRBLU500R is a six AWG stranded copper wire. This wire is meant for various electrical wiring tasks. It has a soft annealed copper conductor and is insulated with PVC. Additionally, it features a nylon jacket for enhanced protection.

• Rated for six hundred volts.
• Suitable for wet locations.
• Heat, moisture, gasoline, and oil resistant.

Product Highlights

This wire is ideal for many applications, providing reliable and safe electrical connections.

Product Information

Standard Information

• Brand: Generic Wire
• Type: THHN

Technical Specifications

• MPN: THHN6STRBLU500R
• Wire Size: 6 AWG
• Stranding: 19 Strands
• Voltage Rating: 600 V
• Current Rating: 55 Amperes (60 Deg C), 65 Amperes (75 Deg C), 75 Amperes (90 Deg C)
• Insulation Material: PVC
• Jacket Material: Nylon
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Oil/Wet)
• Length: 500 feet
• Color: Blue
• Material: Soft Annealed Copper
• Wet Location Use: Yes
• Insulation Thickness: 30 MIL
• Jacket Thickness: 5 MIL
• Outer Diameter: 249 MIL
• Approval: UL (Canada and US)
