THHNCU-GENERIC THHN4STRBLK1000R, THHN, 4 AWG, 1000' Reel

Product Description

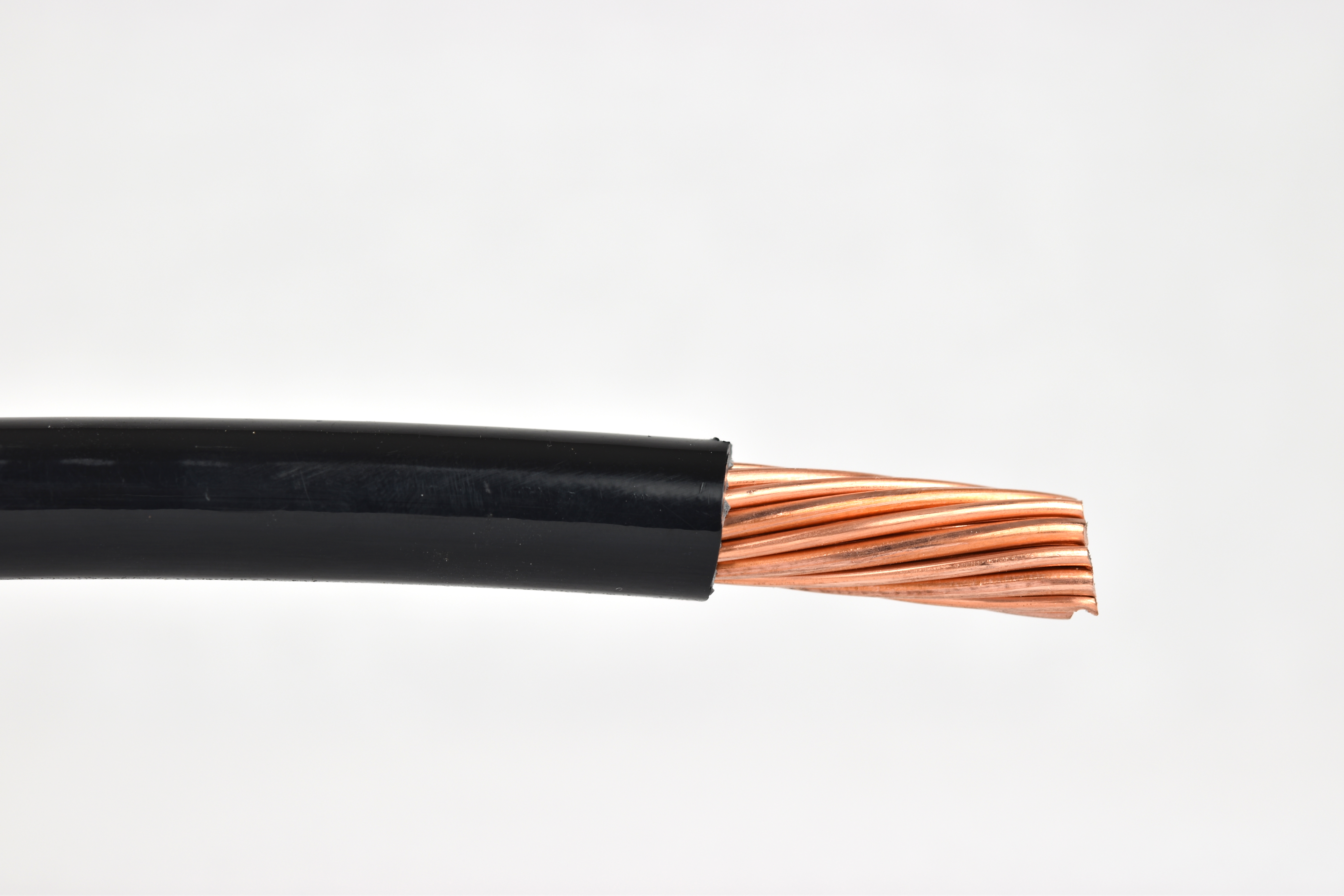

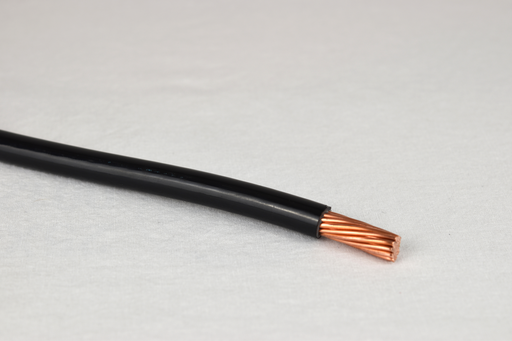

The THHNCU-GENERIC THHN4STRBLK1000R is a four American Wire Gauge black wire featuring 19 strands of soft annealed copper. This wire comes on a 1000-foot reel and is designed to be used in various electrical applications including conduit and cable trays. It has a thermoplastic insulation with a nylon jacket which makes it suitable for both dry and wet locations.

• Conductor material: Soft annealed copper
• Insulation material: PVC
• Jacket material: Nylon

Product Highlights

This THHN wire is rated for 600 volts and offers resistance to heat, moisture, gasoline, and oil. Its robust structure allows for reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Generic Wire
• Type: THHN

Technical Specifications

• Wire Size: 4 AWG
• Stranding: 19 Strands
• Color: Black
• Material: Soft Annealed Copper
• Length: 1000 feet
• Voltage Rating: 600 V
• Current Rating: 70 Ampere (60 Deg C), 85 Ampere (75 Deg C), 95 Ampere (90 Deg C)
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Oil/Wet)
• Insulation Material: PVC
• Jacket Material: Nylon
• Outer Diameter: 318 MIL
• Insulation Thickness: 40 MIL
• Jacket Thickness: 6 MIL
• Wet Location Use: Yes
• Approval: UL (Canada and US)
