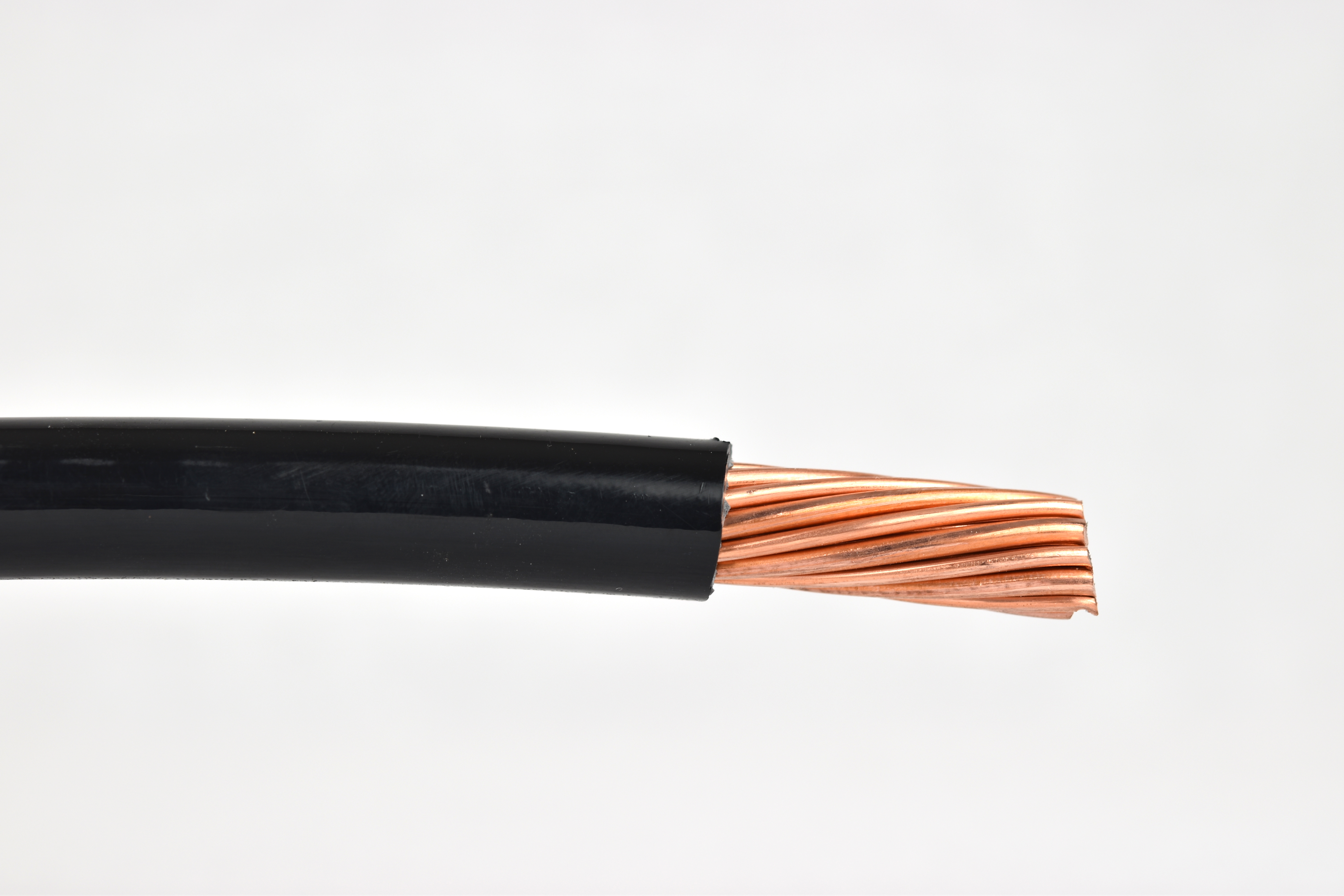

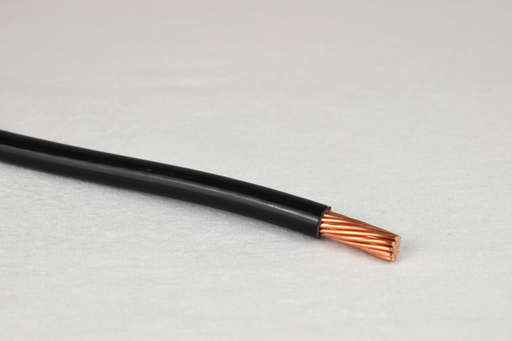

THHNCU-GENERIC THHN4/0STRBLK500R 4/0 AWG Black Copper Building Wire

Product Description

The THHNCU-GENERIC THHN4/0STRBLK500R is a four aught stranded copper building wire designed for various electrical applications. This wire has black thermoplastic insulation and a durable nylon jacket, providing resistance and durability. It is rated for use in wet locations with a voltage capacity of six hundred volts and comes in a five hundred-foot spool.

• Features 4/0 AWG size with nineteen strands.
• Approved for THHN and THWN-2 wiring applications.
• Includes PVC insulation for added protection.

Product Highlights

This wire is ideal for conduit and cable tray applications, supporting services, feeders, and branch circuits in both commercial and residential setups.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• MPN: THHN4/0STRBLK500R

Technical Specifications

• Wire Size: 4/0 AWG
• Stranding: 19
• Length: 500 feet
• Voltage Rating: 600 V
• Current Rating: 195 Ampere (60 Deg C), 230 Ampere (75 Deg C), 260 Ampere (90 Deg C)
• Temperature Rating: 90 Degrees Celsius
• Insulation Material: PVC
• Jacket Material: Nylon
• Wet Location Use: Yes
• Approval: UL (Canada and US)
• Outer Diameter: 0.624 inches
• Insulation Thickness: 0.050 inches
• Jacket Thickness: 0.007 inches
