THHNCU-GENERIC THHN1STRORGMR 1/0 AWG Black Copper Building Wire

Product Description

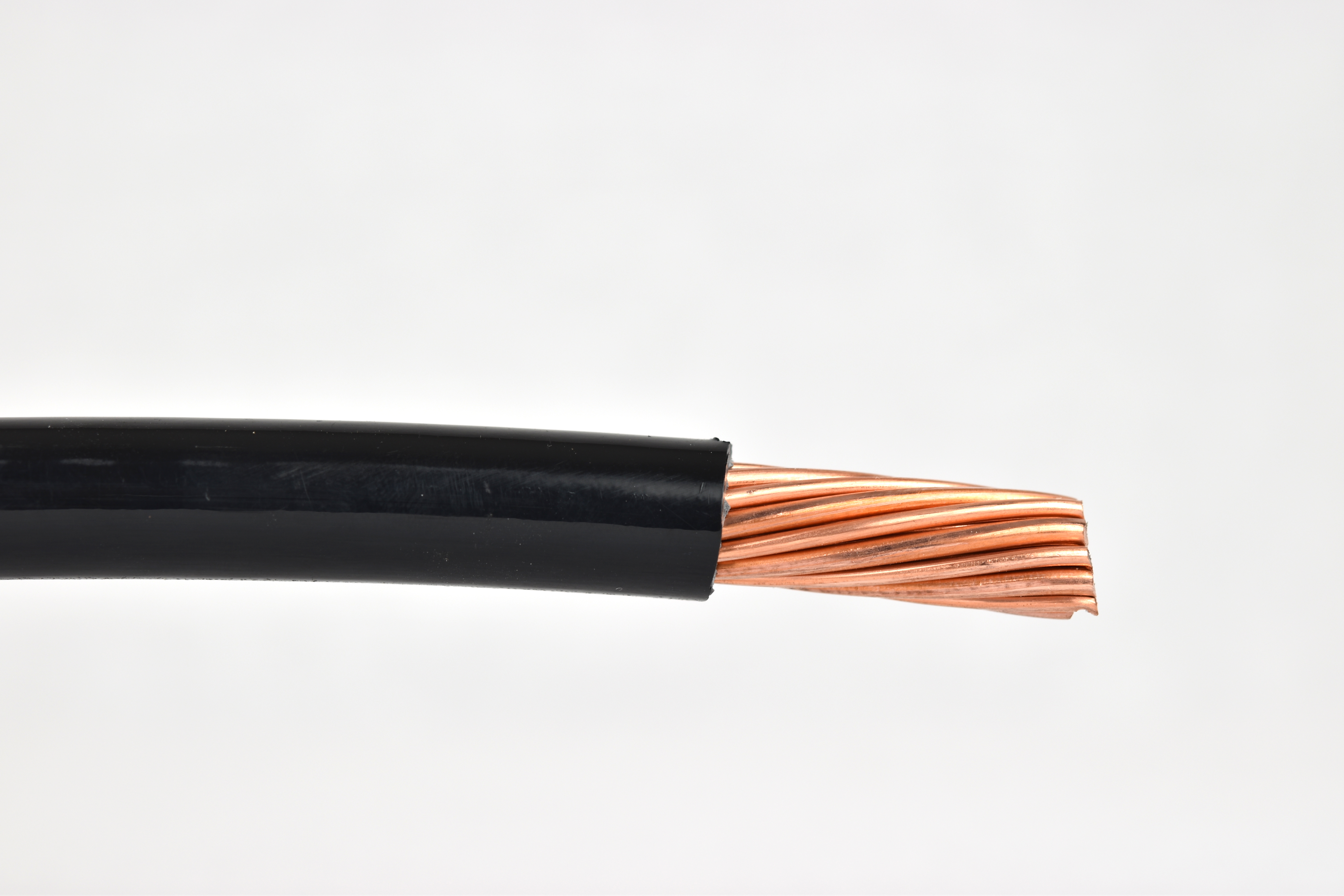

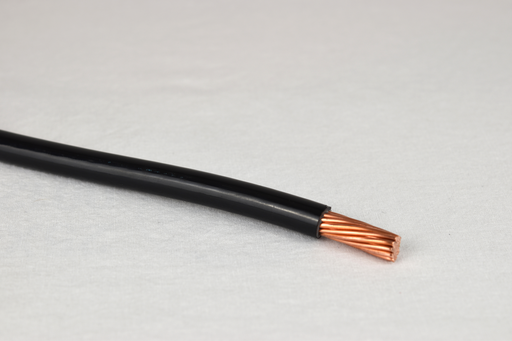

The THHNCU-GENERIC THHN1STRORGMR is a 1/0 AWG copper building wire designed for various electrical applications. It features 19 strands of soft annealed copper, which enhances flexibility and conductivity. The wire is covered with black thermoplastic insulation and a nylon sheath, providing durability and protection in challenging conditions.

• Suitable for wet locations
• Rated for up to 600 volts
• Complies with UL standards for safety

Product Highlights

This building wire is ideal for residential, commercial, and industrial use. Its robust construction allows for reliable performance in environments exposed to moisture, heat, and chemicals.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• MPN: THHN1STRORGMR

Technical Specifications

• Current Rating: 125 Ampere at 60 Deg C, 150 Ampere at 75 Deg C, 170 Ampere at 90 Deg C
• Jacket Thickness: 7 MIL
• Insulation Thickness: 50 MIL
• Outer Diameter: 474 MIL
• Certifications: UL (Canada and US)
• Stranding: 19 Strands
• Wire Size: 1/0 AWG
• Length: 5000 feet
• Type: THHN
• Voltage Rating: 600 V
• Jacket Material: Nylon
• Wet Location Use: Yes
• Insulation Material: PVC
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Oil/Wet)
