THHNCU-GENERIC THHN14STRGRN500R 14 AWG Green Stranded Copper Building Wire

Product Description

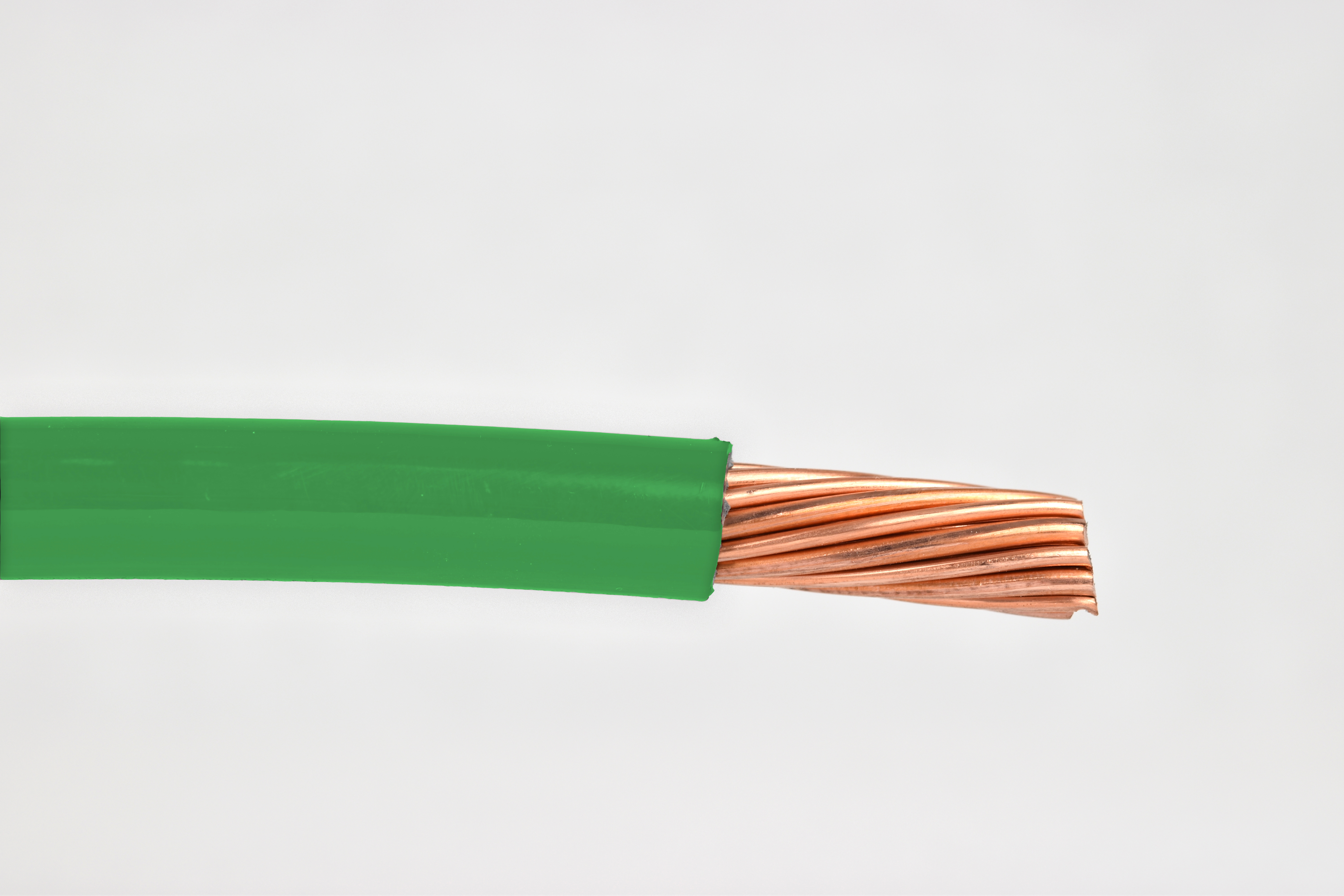

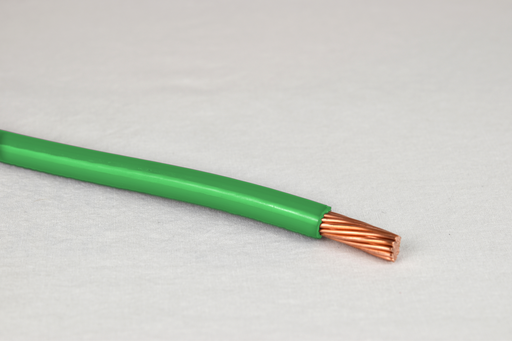

The THHNCU-GENERIC THHN14STRGRN500R is a 14 AWG green stranded copper building wire. This wire has nineteen strands of soft annealed copper and features thermoplastic insulation with a nylon jacket. Designed for wet locations, it is resistant to heat, moisture, gasoline, and oil.

• Rated for 600 volts.
• Temperature rating of ninety degrees Celsius.
• Comes in a five hundred foot coil.

Product Highlights

The THHN wire is suitable for use in various electrical systems, particularly in conditions where moisture is present.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• Manufacturer Part Number: THHN14STRGRN500R

Technical Specifications

• Wire Size: 14 AWG
• Stranding: 19 strands
• Color: Green
• Material: Soft Annealed Copper
• Length: 500 feet
• Type: THHN
• Voltage Rating: 600 V
• Jacket Material: Nylon
• Insulation Material: PVC
• Temperature Rating: 90 Degrees Celsius
• Wet Location Use: Yes
• Current Rating: 15 Amperes
• Standard: UL (Canada and US)
• Outer Diameter: 0.109 inches
• Insulation Thickness: 0.015 inches
• Jacket Thickness: 0.004 inches
