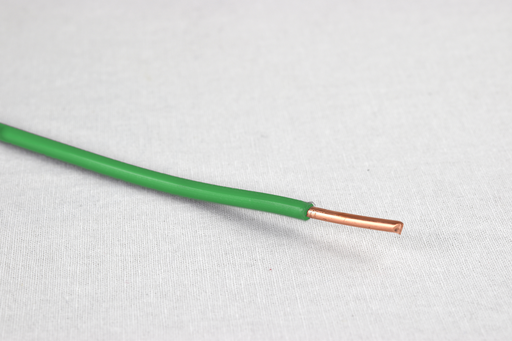

THHNCU-GENERIC THHN14SOLGRN500R 14 AWG Solid Green Copper Wire

Product Description

The THHNCU-GENERIC THHN14SOLGRN500R is a 14 AWG solid conductor copper wire designed for various electrical uses. It features a soft annealed copper conductor that is insulated with PVC and has a nylon jacket. This wire is ideal for installation in conduit and cable trays, serving services, feeders, and branch circuits.

• 14 AWG solid copper conductor
• PVC insulation with nylon jacket
• Rated for 600V and suitable for wet locations

Product Highlights

Designed for both indoor and outdoor applications, the THHNCU-GENERIC THHN14SOLGRN500R wire is rated for up to 600 volts and can be used in wet locations. It comes in a convenient 500-foot coil for easy handling and installation.

Product Information

Standard Information

• Brand: Generic Wire
• MPN: THHN14SOLGRN500R

Technical Specifications

• Type: THHN
• Wire Size: 14 AWG
• Stranding: Solid
• Conductor Material: Soft Annealed Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Color: Green
• Length: 500 feet
• Voltage Rating: 600 V
• Current Rating: 15 Ampere
• Temperature Rating: 90 Degrees Celsius
• Wet Location Use: Yes
• Direct Burial: Yes
• Standard: UL (Canada and US)
• Outer Diameter: 0.109 inches
• Insulation Thickness: 0.015 inches
• Jacket Thickness: 0.004 inches
