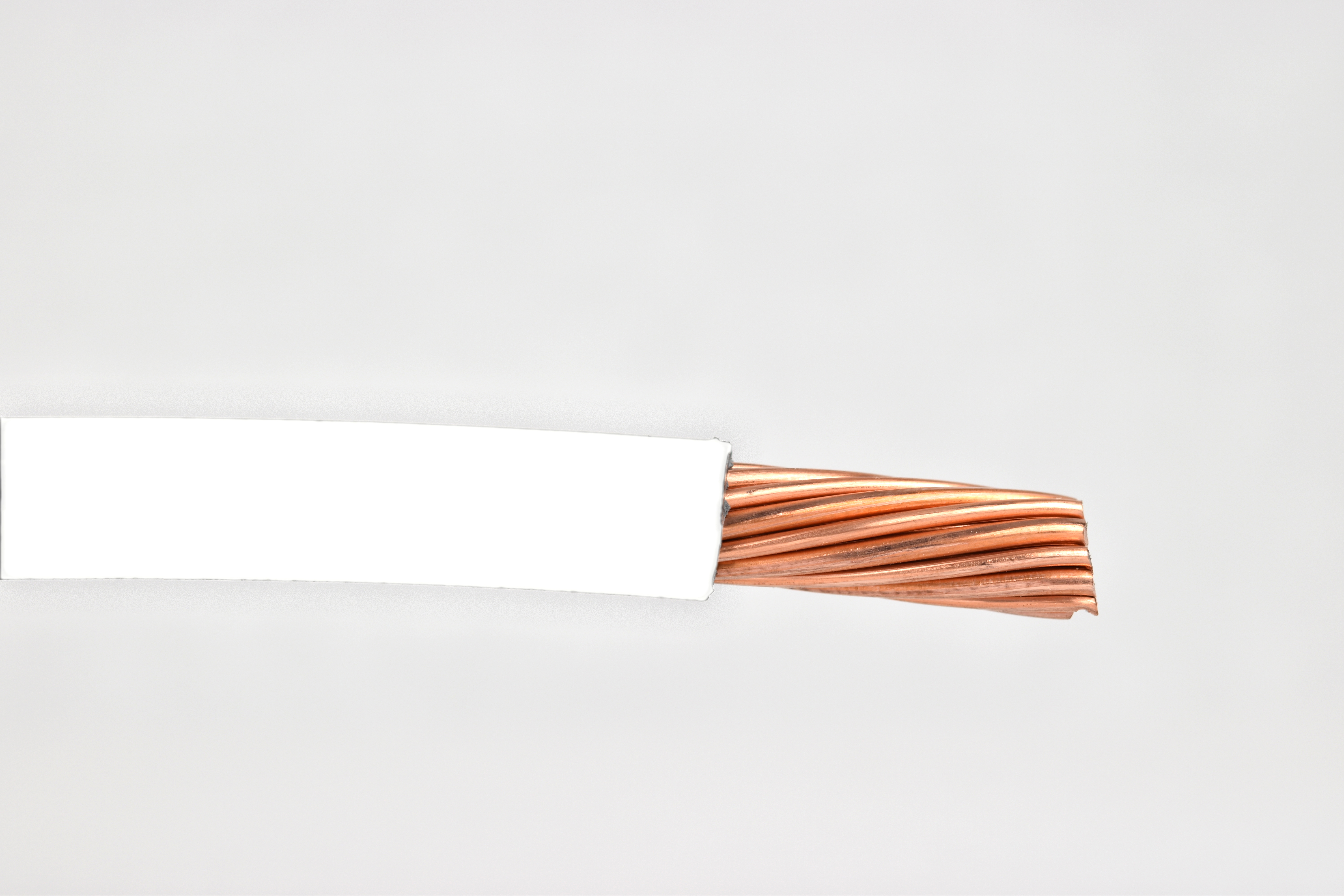

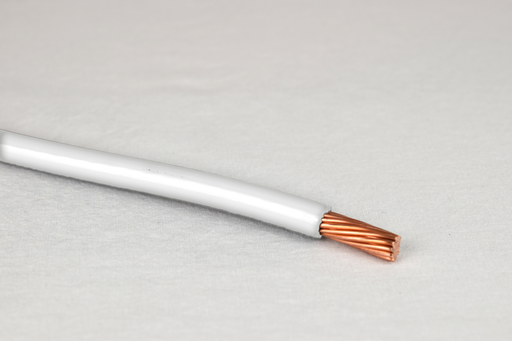

THHNCU-GENERIC THHN12STRWHT500R THHN 12 AWG White Stranded Copper Wire

Product Description

The THHNCU-GENERIC THHN12STRWHT500R is a twelve gauge stranded copper wire suitable for conduit and cable trays in various applications. This wire is designed for use in services, feeders, and branch circuits. The thermoplastic insulation, along with a nylon sheath, ensures resistance to heat, moisture, gasoline, and oil.

• Liquid and moisture resistant with nylon jacket
• Rated for use in wet and dry locations (THHN/THWN-2)
• Contains nineteen strands of soft annealed copper for flexibility

Product Highlights

Ideal for electrical installations in various environments, this wire is rated for six hundred volts, making it suitable for residential and commercial use.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• MPN: THHN12STRWHT500R

Technical Specifications

• Type: THHN
• Wire Size: 12 AWG
• Stranding: 19 Strands
• Conductor Material: Soft Annealed Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Color: White
• Length: 500 feet
• Voltage Rating: 600 V
• Current Rating: 20 Ampere
• Temperature Rating: 90 Degrees Celsius
• Wet Location Use: Yes
• Outer Diameter: 119 MIL
• Insulation Thickness: 15 MIL
• Jacket Thickness: 4 MIL
• Standard: UL (Canada and US)
• Approval: UL (Canada and US)
• Category: Copper Building Wiring - THHN - T90 - STR
• UNSPSC: 26121614
