THHNCU-GENERIC THHN12STRPUR500R 12 AWG Purple THHN Wire

Product Description

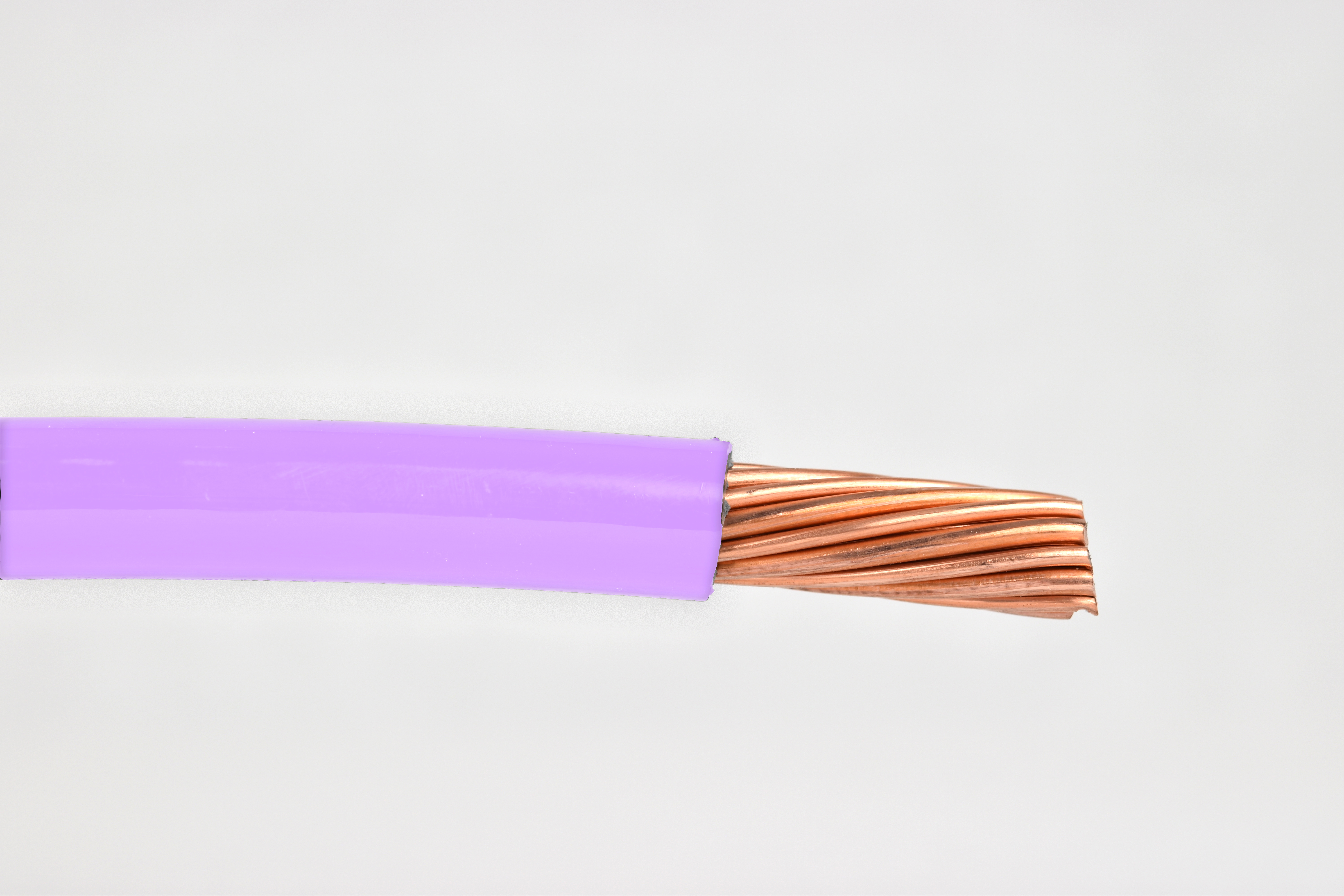

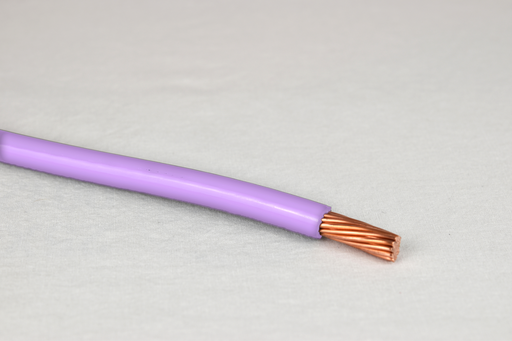

The THHNCU-GENERIC THHN12STRPUR500R is a twelve AWG stranded copper wire designed for a variety of electrical applications. This wire features THHN insulation and a purple nylon jacket, making it suitable for both dry and wet locations. The wire is rated for up to six hundred volts, ensuring it can handle considerable electrical loads. Constructed from nineteen strands of soft annealed copper, it is flexible and ideal for installations that require routing through conduit and cable trays.

• Rated for wet locations and six hundred volts
• Stranded copper construction for flexibility
• Comes in a five hundred foot coil for extended use

Product Highlights

This product is a reliable choice for commercial or industrial applications where robust wiring is needed.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• MPN: THHN12STRPUR500R

Technical Specifications

• Wire Size: 12 AWG
• Stranding: 19
• Length: 500 feet
• Voltage Rating: 600 V
• Current Rating: 20 Ampere
• Temperature Rating: 90 Degrees Celsius
• Material: Soft Annealed Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Color: Purple
• Type: THHN
• Wet Location Use: Yes
• Direct Burial: No
• Shielded: No
• Grounded: No
• Standard: UL (Canada and US)
• Approval: UL (Canada and US)
• Outer Diameter: 0.119 inches
• Insulation Thickness: 0.015 inches
• Jacket Thickness: 0.004 inches
• UNSPSC: 26121614
