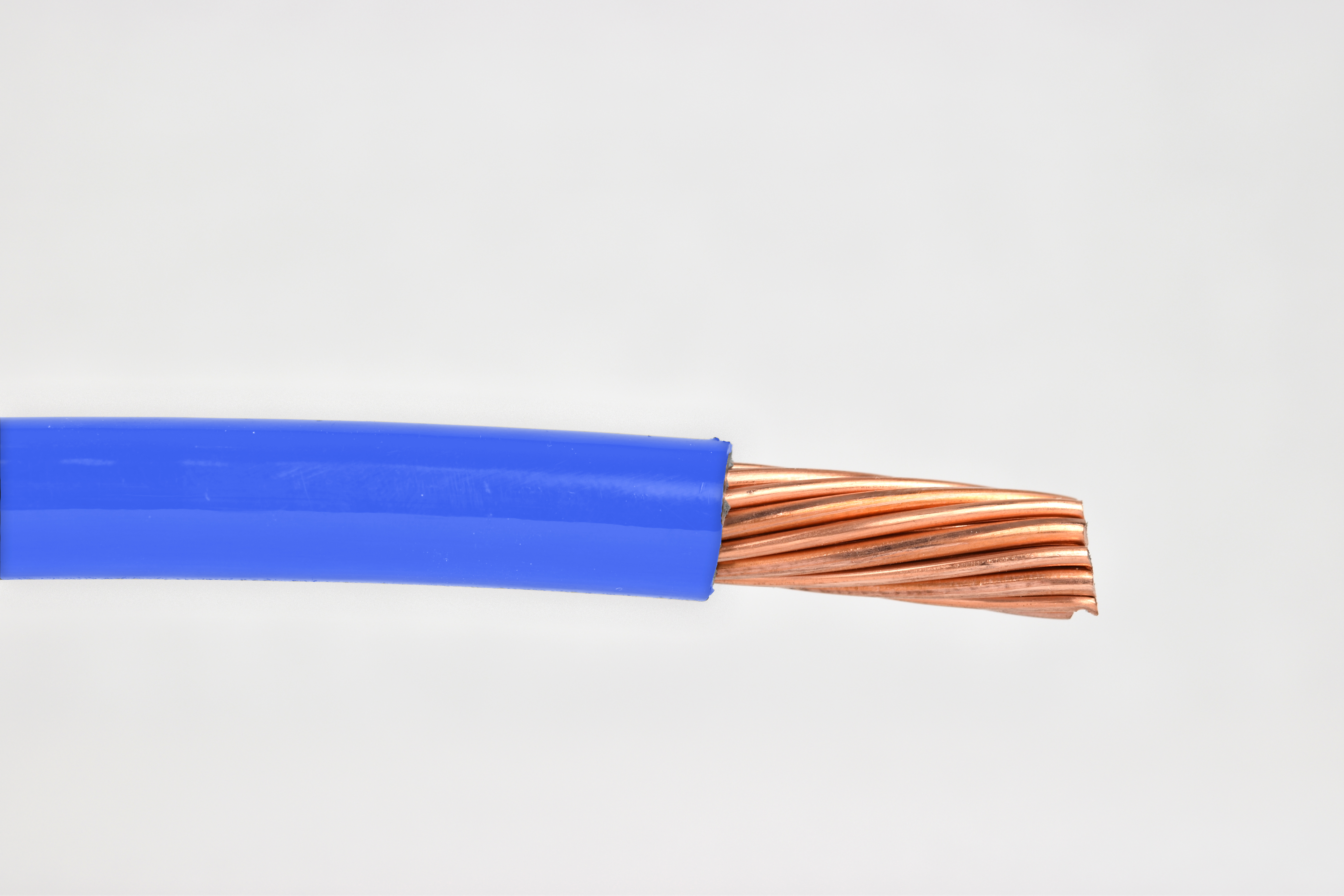

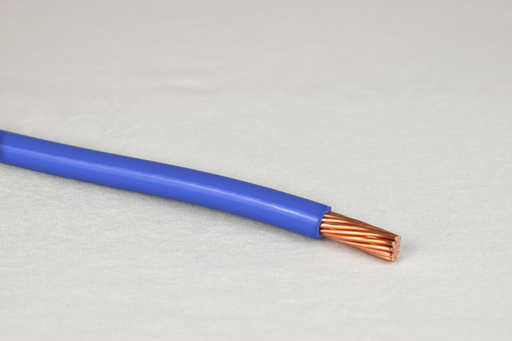

THHNCU-GENERIC THHN12STRORG2500R 12 AWG Stranded Copper Wire

Product Description

The THHNCU-GENERIC THHN12STRORG2500R is a twelve AWG stranded copper wire. This wire has a soft annealed copper conductor and is insulated with thermoplastic material and wrapped in a nylon jacket. It is designed for use in wet locations and can resist heat, moisture, gasoline, and oil. This product is delivered on a two thousand five hundred foot reel.

• Twelve AWG stranded copper conductor
• THHN thermoplastic insulation with nylon jacket
• Rated for six hundred volts

Product Highlights

This wire is suitable for various electrical applications, especially in environments that require resistance to moisture and chemicals.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• Manufacturer Part Number: THHN12STRORG2500R

Technical Specifications

• Wire Size: 12 AWG
• Stranding: 19
• Material: Soft Annealed Copper
• Length: 2500 feet
• Type: THHN
• Voltage Rating: 600 volts
• Jacket Material: Nylon
• Insulation Material: PVC
• Temperature Rating: 90 degrees Celsius
• Current Rating: 20 Amperes
• Wet Location Use: Yes
• Direct Burial: No
• Shielded: No
• Grounded: No
• Standard: UL (Canada and US)
• Jacket Thickness: 0.004 inches
• Insulation Thickness: 0.015 inches
• Outer Diameter: 0.119 inches
• UNSPSC: 26121614
