THHNCU-GENERIC THHN10STRWHT500R 10 AWG White Stranded THHN Wire

Product Description

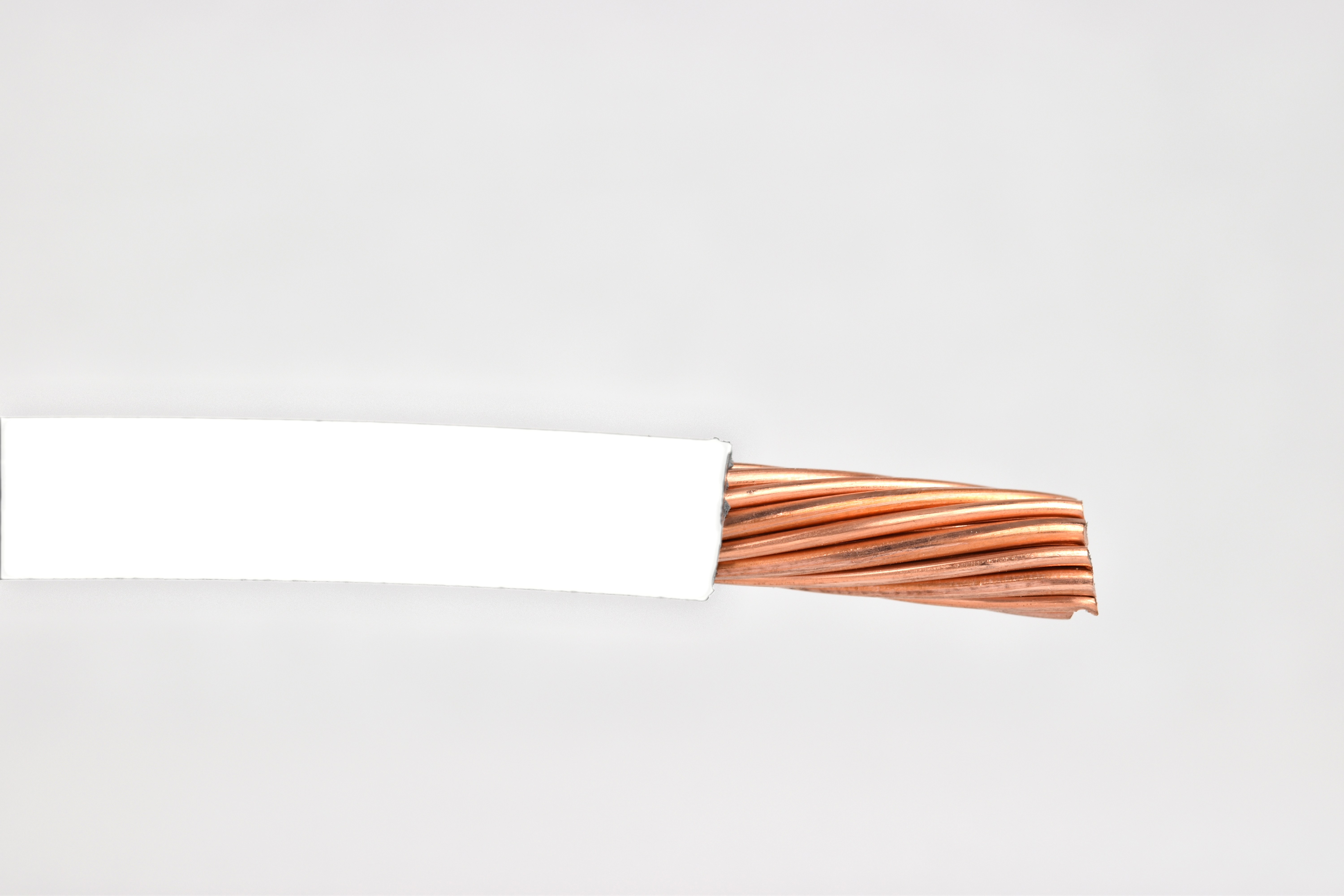

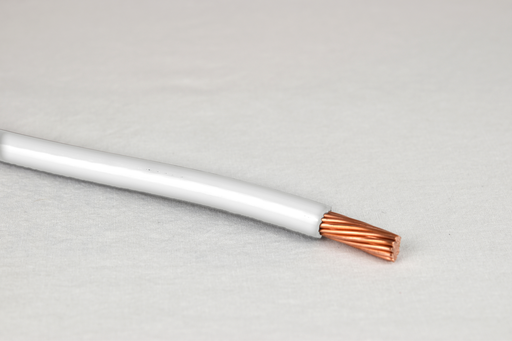

The THHNCU-GENERIC THHN10STRWHT500R is a 10 AWG stranded THHN wire. This wire has a soft annealed copper conductor and features PVC insulation along with a nylon jacket. It is rated for six hundred volts and is suitable for wet locations, making it ideal for various applications. It is designed for use in conduit and cable trays for services, feeders, and branch circuits.

• Stranded copper conductor
• PVC insulation with nylon jacket
• Meets UL standards for Canada and the US

Product Highlights

This THHN wire provides durability and flexibility for a range of electrical wiring tasks.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• MPN: THHN10STRWHT500R

Technical Specifications

• Wire Size: 10 AWG
• Stranding: 19
• Color: White
• Material: Soft Annealed Copper
• Length: 500 feet
• Type: THHN
• Voltage Rating: 600 V
• Jacket Material: Nylon
• Insulation Material: PVC
• Temperature Rating: 90 Degrees Celsius
• Current Rating: 30 Ampere
• Wet Location Use: Yes
• Standard: UL (Canada and US)
• Outer Diameter: 0.161 inches
• Insulation Thickness: 0.020 inches
• Jacket Thickness: 0.004 inches
