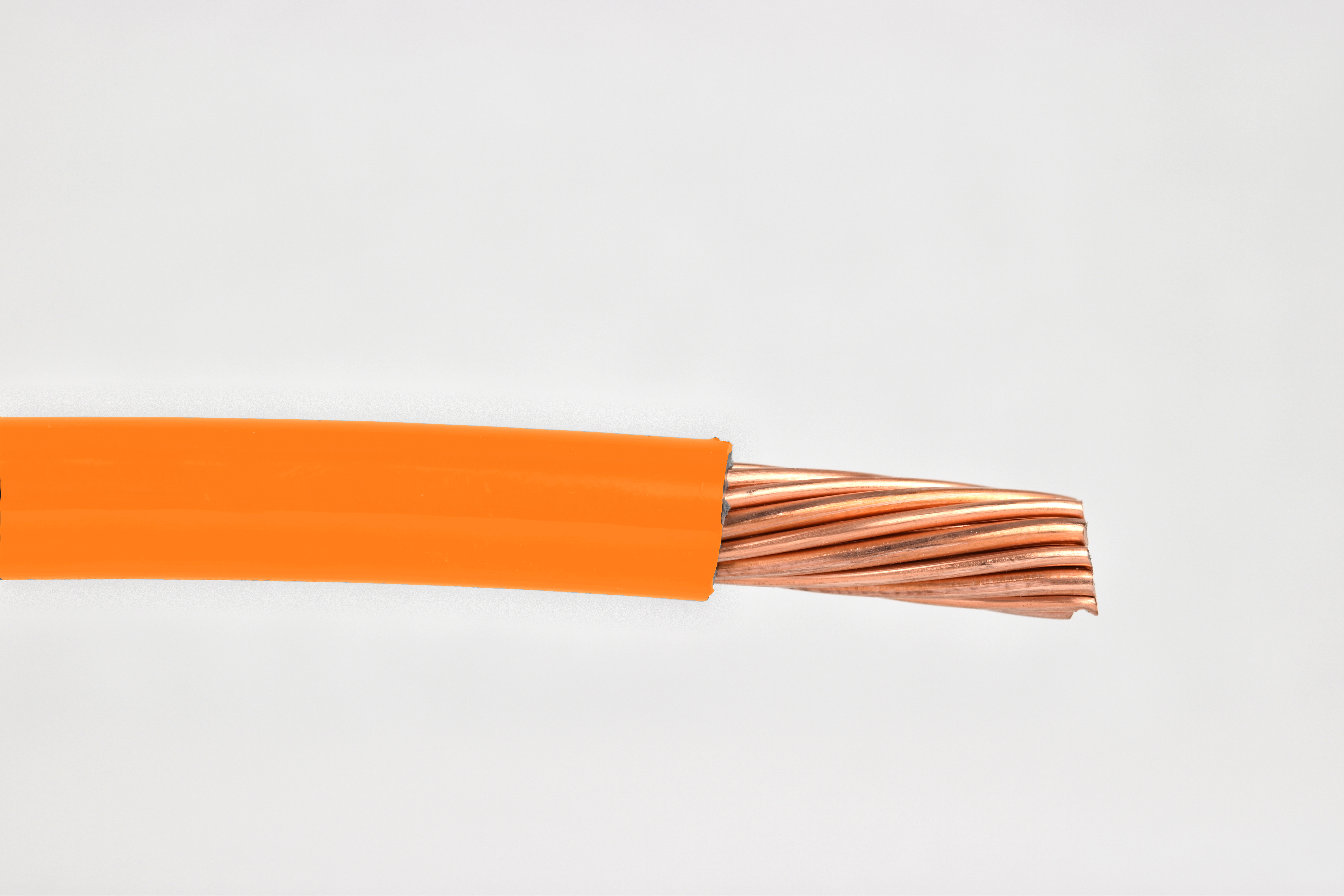

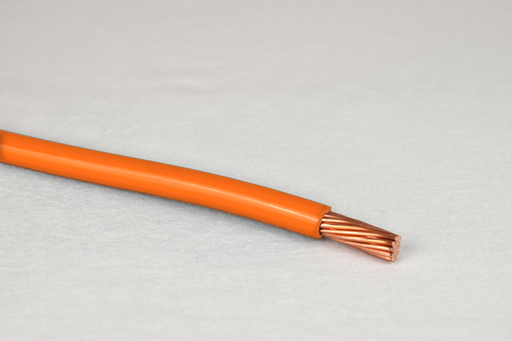

THHNCU-GENERIC THHN10STRORG500R THHN 10 AWG Orange Stranded Copper Wire

Product Description

The THHNCU-GENERIC THHN10STRORG500R is an essential wire for electrical projects. This ten American wire gauge (AWG) stranded copper wire is designed for use in various applications. It features durable PVC insulation along with a nylon jacket for enhanced protection. The wire is suitable for installation in conduit and cable trays for services, feeders, and branch circuits. Rated for wet locations, it has a voltage capacity of six hundred volts.

• 10 AWG stranded copper conductor
• PVC insulation with nylon jacket
• Rated for 600V and wet locations

Product Highlights

This wire is ideal for contractors and electricians needing a reliable solution for residential and commercial electrical work.

Product Information

Standard Information

• Brand: Generic Wire
• MPN: THHN-10-STR19-ORG-CU-500CL

Technical Specifications

• Type: THHN
• Wire Size: 10 AWG
• Stranding: 19
• Conductor Material: Soft Annealed Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Color: Orange
• Length: 500 feet
• Voltage Rating: 600 V
• Current Rating: 30 Ampere
• Temperature Rating: 90 Degrees Celsius
• Wet Location Use: Yes
• Direct Burial: No
• Shielded: No
• Grounded: No
• Standard: UL (CANADA AND US)
• Approval: UL (Canada and US)
• Outer Diameter: 0.161 inches
• Insulation Thickness: 0.020 inches
• Jacket Thickness: 0.004 inches
• UNSPSC: 26121614
