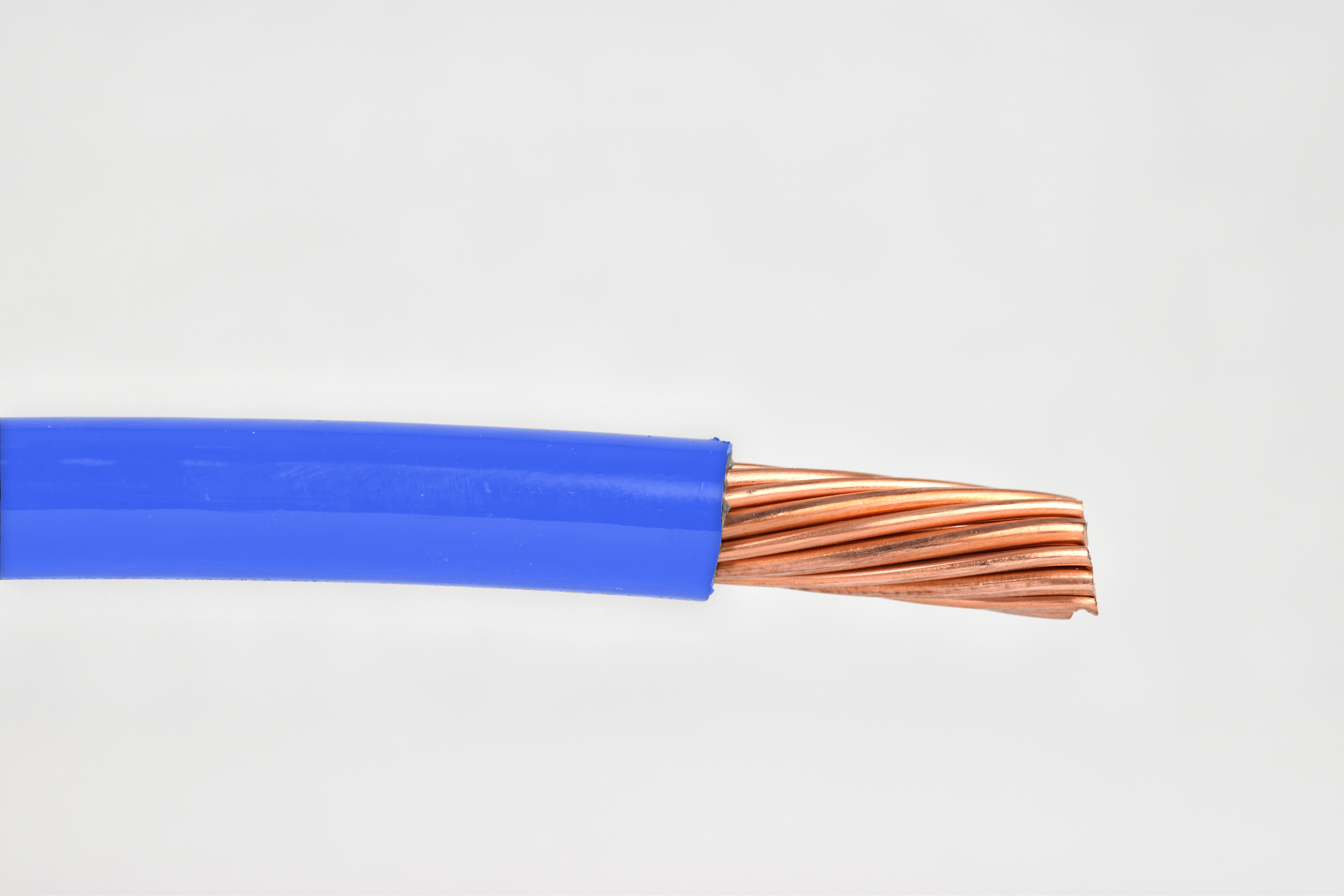

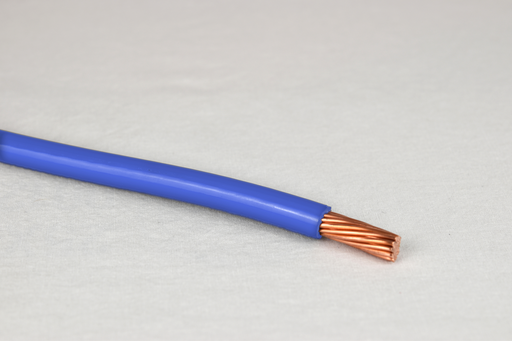

THHNCU-GENERIC THHN10STRBLU500R 10 AWG 19-Strand Blue 500' Copper Building Wire

Product Description

The THHNCU-GENERIC THHN10STRBLU500R is a ten AWG, nineteen-strand copper building wire in blue. This wire features a soft annealed copper conductor which is insulated with thermoplastic materials and encased in a nylon sheath for durability. It is designed for applications in wet locations and can withstand exposure to heat, moisture, gasoline, and oil. Rated for six hundred volts and with a temperature tolerance of ninety degrees Celsius, this wire is suitable for various electrical installations.

• Ten AWG wire with nineteen strands
• Rated for 600 volts and temperatures up to 90 degrees Celsius
• Ideal for wet location use

Product Highlights

This product delivers reliable performance across various applications, meeting the standard approvals necessary for safe use.

Product Information

Standard Information

• Brand: Generic Wire
• Manufacturer Part Number: THHN10STRBLU500R

Technical Specifications

• Type: THHN
• Material: Soft Annealed Copper
• Wire Size: 10 AWG
• Stranding: 19
• Color: Blue
• Length: 500 feet
• Voltage Rating: 600 V
• Current Rating: 30 Ampere
• Insulation Material: PVC
• Jacket Material: Nylon
• Temperature Rating: 90 Degrees Celsius
• Wet Location Use: Yes
• Standard: UL (Canada and US)
