THHNCU-GENERIC THHN10SOLORG500R Solid Orange Copper Conductor 10 AWG THHN10SOLORG500R

Product Description

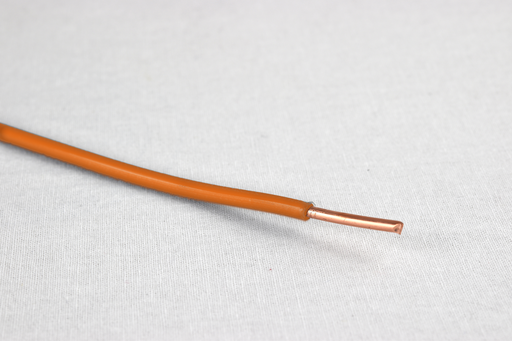

The THHNCU-GENERIC THHN10SOLORG500R is a solid conductor made from ten American wire gauge soft annealed copper. This wire includes PVC insulation covered with a nylon jacket. It is rated for six hundred volts and can handle temperature up to ninety degrees Celsius. Designed for wet locations and UL listed in both Canada and the US, it comes in a five hundred foot coil.

• 10 AWG solid copper wire
• PVC insulation with nylon jacket
• Rated for 600 volts and 90 degrees Celsius

Product Highlights

This wire is suitable for various electrical applications, ensuring reliability in demanding conditions.

Product Information

Standard Information

• Brand: Generic Wire
• Manufacturer Part Number: THHN10SOLORG500R

Technical Specifications

• Color: Orange
• Current Rating: 30 Amperes
• Direct Burial: Yes
• Insulation Material: PVC
• Insulation Thickness: 20 thousandths of an inch
• Jacket Material: Nylon
• Jacket Thickness: 4 thousandths of an inch
• Material: Soft Annealed Copper
• Outer Diameter: 161 thousandths of an inch
• Standard: UL (Canada and US)
• Stranding: Solid
• Temperature Rating: 90 Degrees Celsius
• Type: THHN
• Voltage Rating: 600 Volts
• Wet Location Use: Yes
• Wire Size: 10 American Wire Gauge
