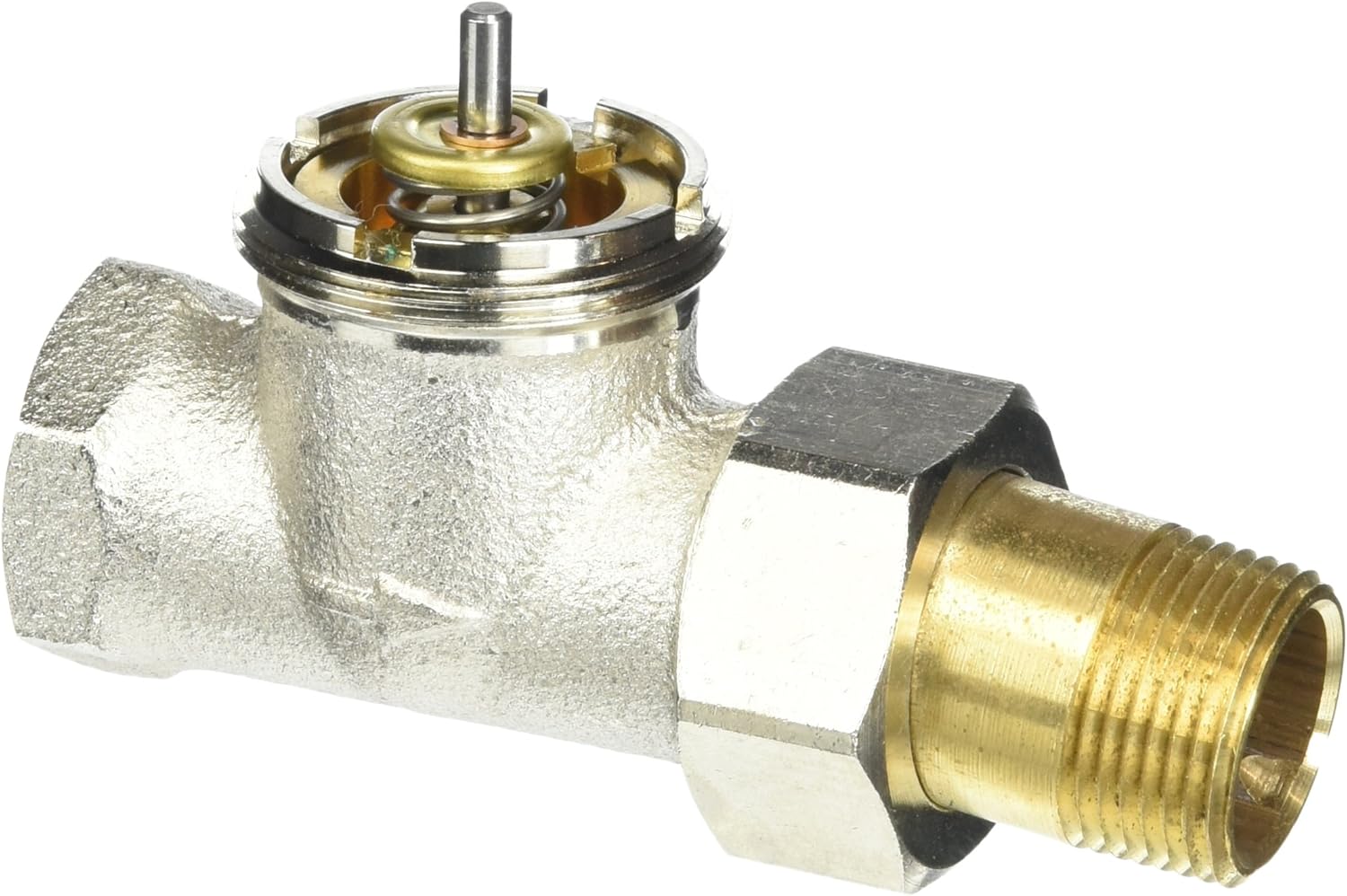

Honeywell V110D1008 Straight Valve Body 3/4 Inch Threaded 150 psi Hot Water 15 psi Steam 5.8 Cv

Product Description

The Honeywell V110D1008 straight valve body is designed to provide automatic control of room temperature in two-pipe heating systems by modulating the flow of hot water or steam. This valve is suitable for high-capacity heating units and is equipped with a resilient EPDM valve seat disc for tight shut-off.

• Automatic control of room temperature
• High-capacity heating units
• Modulates hot water or steam flow

Product Highlights

The Honeywell V110D1008 enhances heating efficiency with automatic temperature control and high-capacity flow regulation. It features a nickel-plated bronze body and threaded connections for easy installation and service.

Product Information

Standard Information

• Brand: Honeywell
• Model: V110D

Technical Specifications

• Type: Straight Valve Body
• Series: V110D
• Material: Nickel Plated Bronze
• End Style: Threaded
• Dimensions: 4-1/8 Inch L
• Nominal Size: 3/4 Inch
• Actuator Type: T104 Thermostatic
• Pressure Rating: 150 psi Hot Water, 15 psi Steam
• Heating Capacity: 162000 BtuH
• Coefficient of Volume: 5.8 Cv
