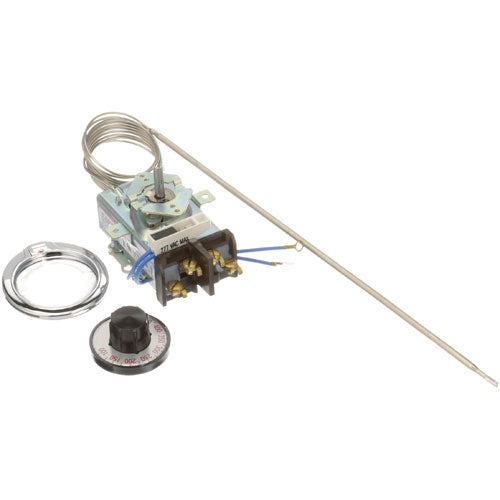

THERMOSTAT W/DIAL D1/D18 3/16 X 13 60 for Vulcan Hart 4746

Product Description

This item for Vulcan Hart 4746 is a thermostat with a dial designed for precision temperature control. It operates within a temperature range of one hundred to four hundred fifty degrees. The bulb measures three-sixteenths of an inch by thirteen inches.

• Temperature range from one hundred to four hundred fifty degrees
• Includes pilot light, dial, and bezel
• Mounts with front ears for easy installation

Product Highlights

This thermostat is essential for maintaining optimal cooking temperatures in Vulcan grill series models.

Product Information

Standard Information

• Type: D1/D18
• Bulb Size: 3/16 x 13

Technical Specifications

• Temperature Capacity: 100 - 450 degrees
• Capillary Length: 60
• Mounting Style: With front ears
• Termination Points: 4
• Pilot Light Included: Yes
• Compatible Models: Vulcan grill series HEG (Electric) without D suffix
• Bulb Material: Tin/Zinc
• Additional Components: Pilot light #38-1068, Dial A249, K-115, #22-1004 OFF-450-100, Bezel A557, K-160, #26-4088
