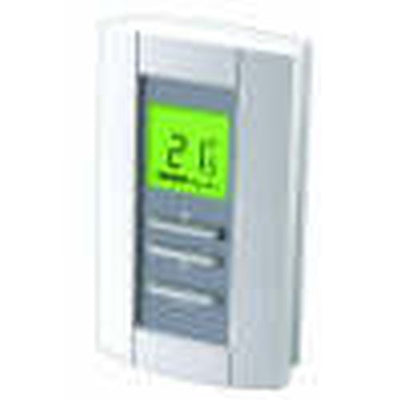

Honeywell TB7980B1005 ZonePro Modulating Thermostat 24V Non-Programmable

Product Description

The Honeywell TB7980B1005 ZonePro Modulating Thermostat delivers precise temperature control in variable air volume (VAV) HVAC systems. Ideal for low-voltage, pressure-dependent applications, this model is suitable for modulating operations and offers additional outputs for increased functionality.

• Versatile application range including VAV, hydronic perimeter heating/cooling.
• Modulating control from 0 to 10 Volts DC with two extra output channels for reheat functions.
• Energy-efficient design with night setback (NSB) capabilities for cost savings.

Product Highlights

Equipped with a digital display and a robust plastic enclosure, the Honeywell ZonePro offers a control range from 50°F to 95°F, supporting both heating and cooling operations. It features three relay outputs for comprehensive control and a mounting system compatible with most electrical boxes.

Product Information

Standard Information

• Brand: Honeywell
• MPN: TB7980B1005

Technical Specifications

• Control Type: Modulating, 0-10V or 2-10V DC
• Output Signal Burden: 10k minimum
• Mounting Type: Wall mount, fits standard electrical boxes
• Dimensions: 2 11/16 inches wide by 4 5/8 inches high by 1 inch deep
• Power Supply: 24V AC
• Frequency: 60 Hz
• Additional Outputs: 1 TRIAC, 1 Analog/TRIAC
