Product Information

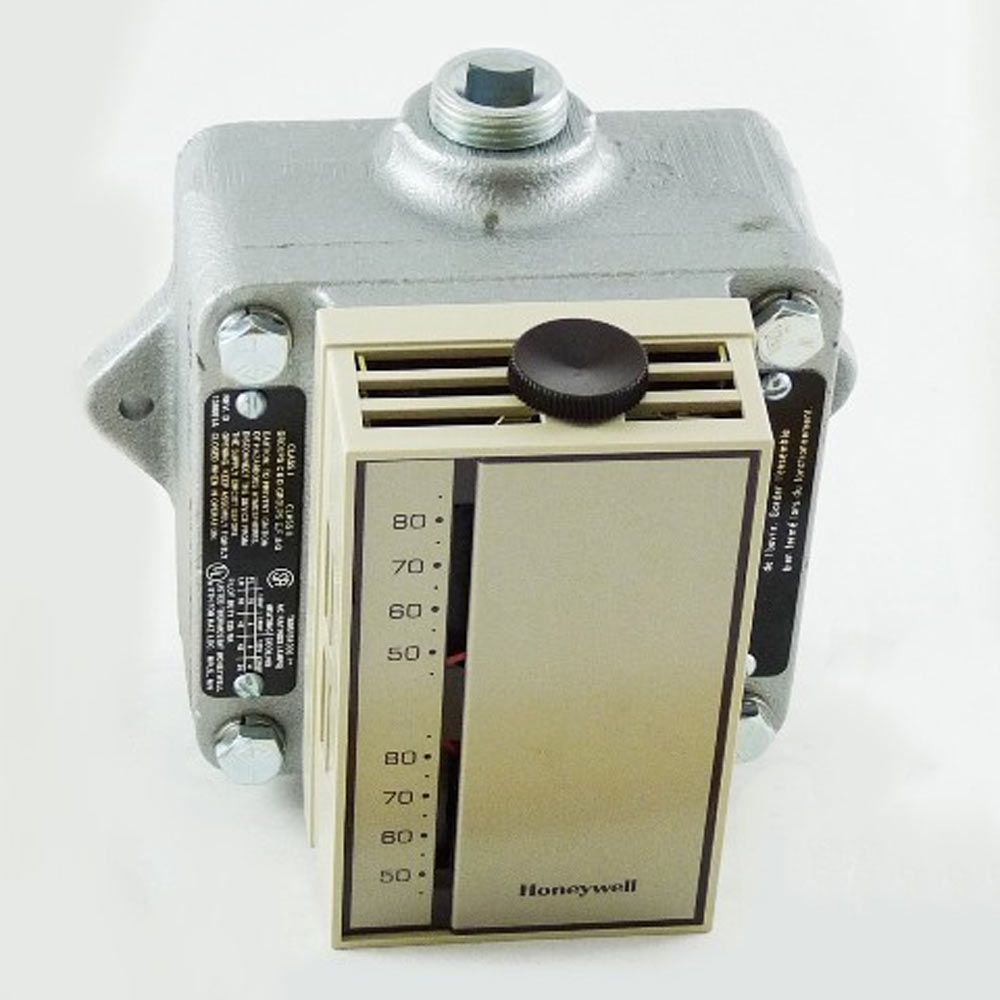

- Thermostat
- Type Line Voltage, Heavy Duty, 1-Heat/1-Cool
- Cover Type Plastic Rectangular Vertical
- Color Tan
- Voltage Rating 120/240 Volt AC at 50/60 Hertz
- Current Rating 10.2 Amp at 120 Volt AC, 6.5 Amp at 240 Volt AC (Heat)/7.4 Amp at 120 Volt AC, 4 Amp at 240 Volt AC (Cool) (Full Load)
- Power Rating 125 Volt Amp (Pilot Duty)
- Switch Type SPDT
- Size 6-3/8 Inch Width x 4-7/16 Inch Depth x 5-5/8 Inch Height
- Approval UL, CSA
- Sensor Element Vapor Filled Dual Diaphragm
- Differential Temperature 1 Deg F
- Terminal Type Screw
- Setting Temperature Rating 46 to 84 Deg F
