THERMOSTAT FDTH-1 14.75 INCH 1.75 INCH 4.5 INCH P-12-B for Montague MTGP-12-B

Product Description

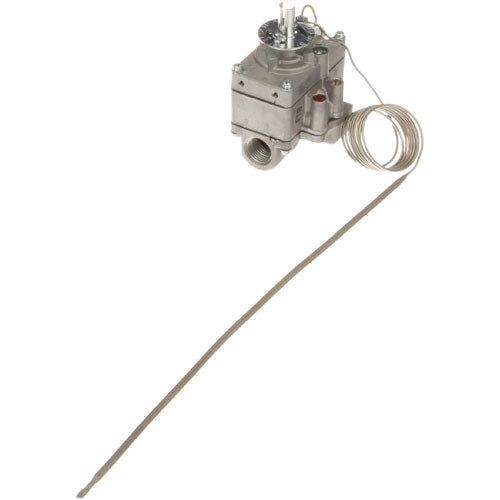

This item for Montague P-12-B is a thermostat designed to regulate temperatures ranging from 300 to 650 degrees Fahrenheit. It has a bulb size of three-sixteenths inches by fourteen and three-fourths inches. The thermostat features a gas inlet and outlet of one-half inch FPT, located on the sides for easy connection. The bypass screw is fully adjustable for optimal flame control.

• Temperature range: 300 to 650 degrees Fahrenheit
• Bulb dimensions: 3/16 inches x 14-3/4 inches
• Gas inlet and outlet: 1/2 inch FPT

Product Highlights

This thermostat is ideal for Mavrik parts, ensuring precise temperature control. Use it in various applications where accurate temperature regulation is required.

Product Information

Standard Information

• Weight: 1.3 lbs
• Dimensions: 14.75 in x 1.75 in x 4.5 in

Technical Specifications

• MPN: P-12-B
• Max Temperature: 650°F
• Min Temperature: 300°F
• Gas Inlet/Outlet Size: 1/2 in FPT
• Dial Model Number: 22-1011
• Cap Size: 48
• Mounting: 4-way mount
