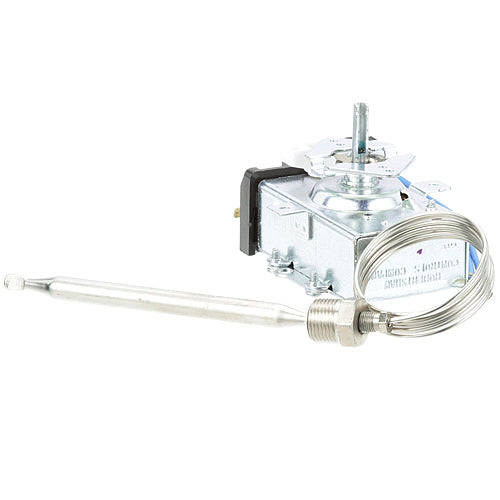

Thermostat - D1/D18 for Cecilware L029F

Product Description

This item for Cecilware MPN L029F is a thermostat designed for D1 and D18 applications. It operates within a temperature range of one hundred to two hundred fifty degrees Fahrenheit and features a bulb size of three eighths by four and a half inches.

• Four terminal setup for high current applications.
• Supports up to ten amp at four hundred eighty volts per pole.
• Compatible with pilot light part number thirty-eight-one-zero-six-eight.

Product Highlights

This thermostat is ideal for applications that require reliable temperature control and can handle significant electrical loads. It is suitable for both air conditioning operation and general high current applications.

Product Information

Standard Information

• Type: D1/D18
• Temperature Range: 100 to 250 degrees Fahrenheit

Technical Specifications

• Bulb Size: 3/8 x 4-1/2 inches
• Current Rating: 10 amp 480V per pole resistive load
• Load Rating: 21 amp 480V 2 poles resistive load
• Voltage: 30 amp 120/277V per pole resistive load
• Full Load Amp: 7.2 full load amp 120-277V
• Locked Rotor Amperage: 42 LRA 120-277V
• Pilot Duty: 250VA 120-277V
