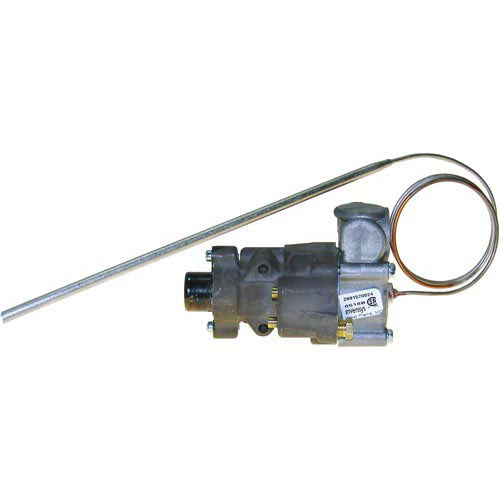

Thermostat BJWA 250-500 (12 X 3/16) 417424-000G2 for Hobart

Product Description

This item for Hobart 417424-000G2 is a thermostat designed for use in commercial cooking equipment. It features a bulb size of three sixteenth inches by twelve inches and operates within a temperature range of low two hundred fifty to high five hundred degrees Fahrenheit. The thermostat's design includes a ninety-degree counterclockwise rotation and has the gas inlet positioned downwards.

• Temperature range: 250-500 degrees Fahrenheit
• Bulb dimensions: 3/16 inches x 12 inches
• 90-degree rotation with gas inlet down

Product Highlights

This thermostat is suitable for various Vulcan griddles including models 481FLT, 148L, and 260LCC among others. It features a bypass adjustment at the top and comes with a cap. Note that it is no longer supplied with a red dial, which can be purchased separately using part number 22-1335.

Product Information

Standard Information

• Weight: 0.81
• Dimensions: 12.5 inches x 2 inches x 2.7 inches

Technical Specifications

• MPN: 417424-000G2
• Type: BJWA
• Cap: 24
• FPT Output: 1/8 inches
• Bulb Size: 3/16 inches x 12 inches
• Rotation: 90 degrees CCW
• Gas Inlet Position: Down
• View Position: Rear
