THERMOSTAT 1100 for Imperial IMP1100

Product Description

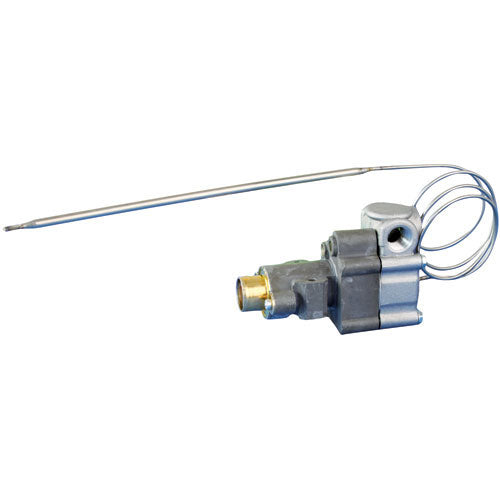

This item for Imperial 1100 is a BJWA thermostat for temperature control. It operates within a temperature range of one hundred fifty to four hundred degrees Fahrenheit. This thermostat features an adjustable bypass at the top and a gas inlet positioned downward. It includes a nickel bulb measuring three sixteenths by eight inches, encased in a fiberglass sheath, ensuring durability. The rotation capability is one hundred eighty degrees, with outlets B and D at one quarter FPT.

• Temperature range: 150°F to 400°F
• Nickel bulb with fiberglass sheath
• Adjustable bypass and gas inlet design

Product Highlights

The Imperial BJWA thermostat is designed for precision and ease of installation, supporting a wide range of heating applications.

Product Information

Standard Information

• Weight: 0.6 lbs
• Dimensions: 9.5 inches L x 2 inches W x 3 inches H

Technical Specifications

• Temperature Range: 150°F to 400°F
• Bulb Size: 3/16 x 8 inches
• Rotation: 180 degrees
• Outlets: 1/4 FPT B & D
• Mounting Diameter: 11/16 inches
• Position Notch: Up
