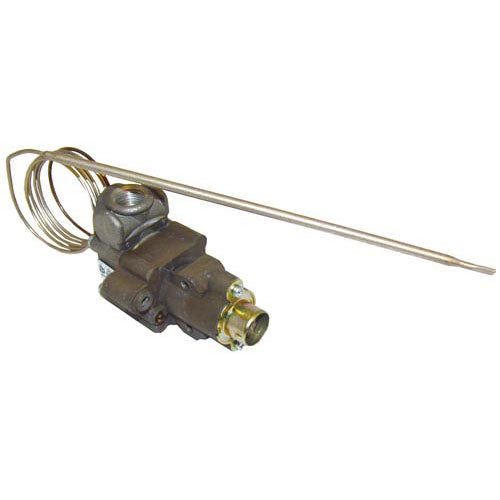

Thermostat BJWA 100-450 36 for Garland 227019

Product Description

This item for Garland MPN 227019 is a thermostat designed for various cooking appliances. It features a bulb size of three-sixteenths inches by nine inches and operates at a temperature range of one hundred to four hundred fifty degrees Fahrenheit. Ideal for commercial kitchens, this thermostat controls the heat accurately.

• Temperature range: 100-450 degrees Fahrenheit
• Bulb dimensions: 3/16 inches x 9 inches
• Capillary length: 36 inches

Product Highlights

The thermostat has a narrow flange body and is suitable for multiple Garland grill models.

Product Information

Standard Information

• Product Notes: Viewed from rear, it shows BJ outlet positions. Includes a bypass adjustment at the top and gas inlet down.
• Type: BJWA
• Rotation: 90 degrees clockwise

Technical Specifications

• Weight: 1 pound
• Dimensions: 14 inches length, 4 inches width, 3.5 inches height
• Compatible with: Bakers Pride and Garland grill models with serial number after 165219
• Dial: Use dial number 22-1251
• Output Connection: 3/8 FPT A
• Dimensional Weight: 1.25 pounds
