THERMOSTAT 47180307 THERMOSTAT 18/10 AWG Solid Copper Thermostat Cable

Product Description

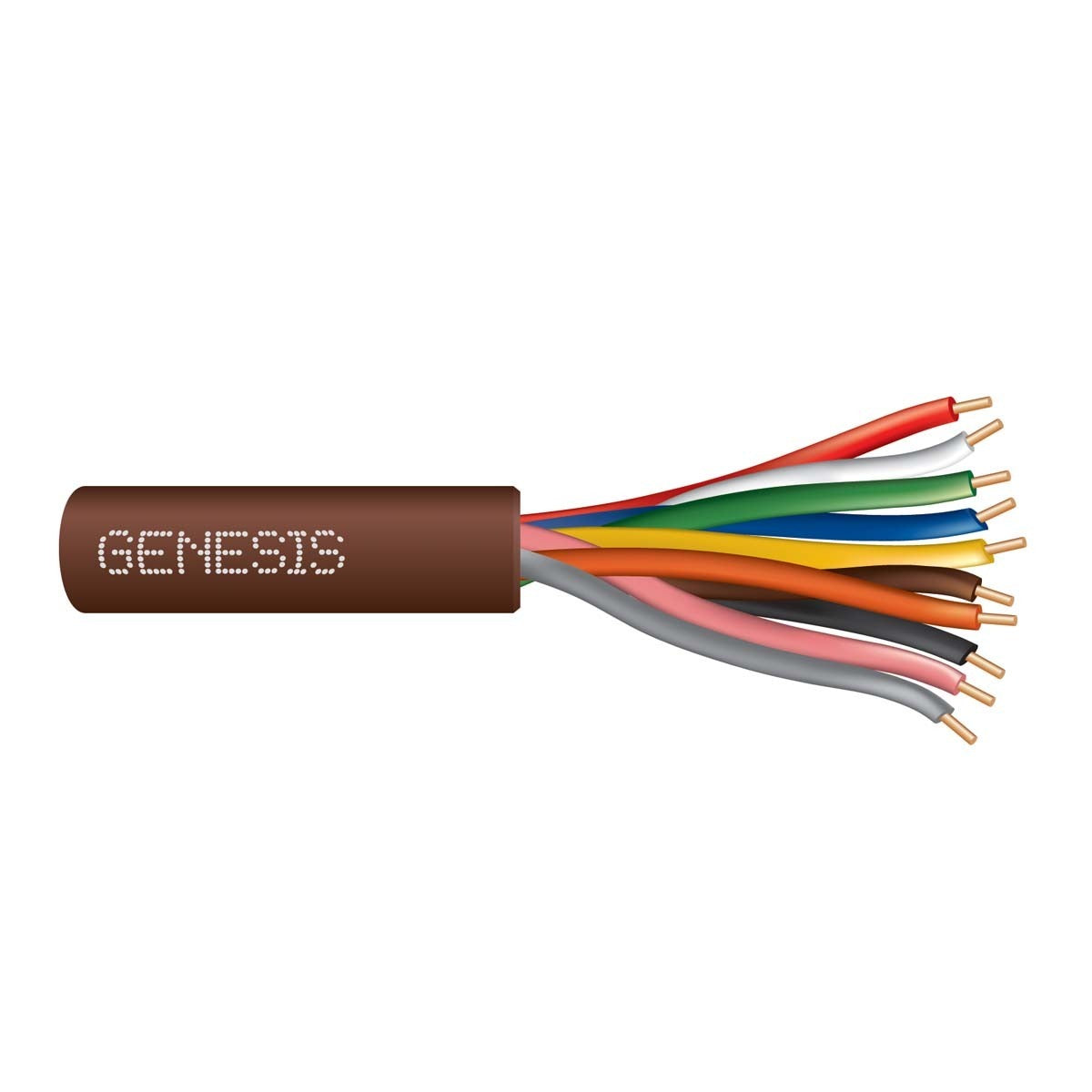

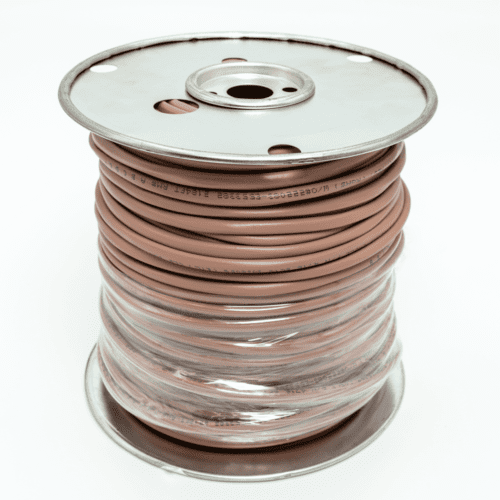

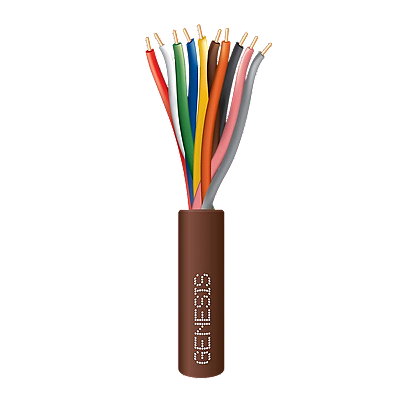

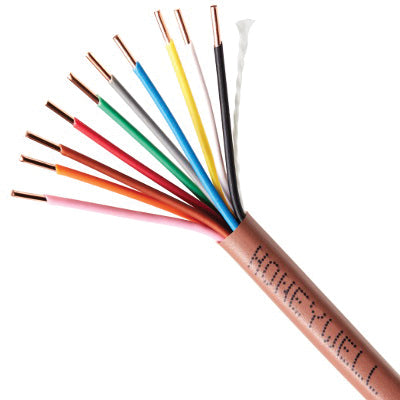

The THERMOSTAT 47180307 is a thermostat cable made with ten solid conductors of bare copper. This cable is rated CL2, making it suitable for in-wall applications and resistant to sunlight. It features polypropylene insulation and a durable PVC jacket. Supplied on a two hundred fifty-foot reel, this cable is ideal for thermostat and low voltage installations.

• 18 AWG solid bare copper conductors
• Features polypropylene insulation and PVC jacket
• CL2 rated for in-wall installations

Product Highlights

The THERMOSTAT 47180307 is designed for reliability in low voltage applications, ensuring optimal performance in various environments.

Product Information

Standard Information

• MPN: 47180307
• UPC: 619172035538

Technical Specifications

• Type: CL2
• Conductor Material: Bare Copper
• Conductor Size: 18 AWG
• Number of Conductors: 10
• Maximum Operating Voltage: 150 V
• Operating Temperature: -20 to 60 degrees C
• Cable Outer Diameter: 0.24 inches
• Jacket Thickness: 0.015 inches
• Insulation Thickness: 0.006 inches
• Flame Rating: UL 1685 Vertical Tray Test
• UV Resistant: Yes
• RoHS Compliant: Yes
