THERMOSTAT 47140307 Thermostat Cable 18 AWG 6 Conductor 250 ft

Product Description

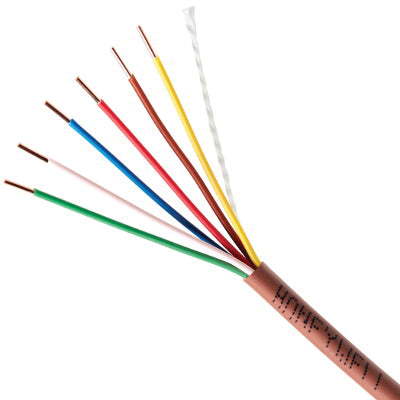

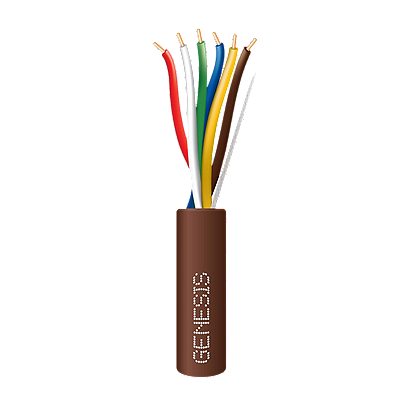

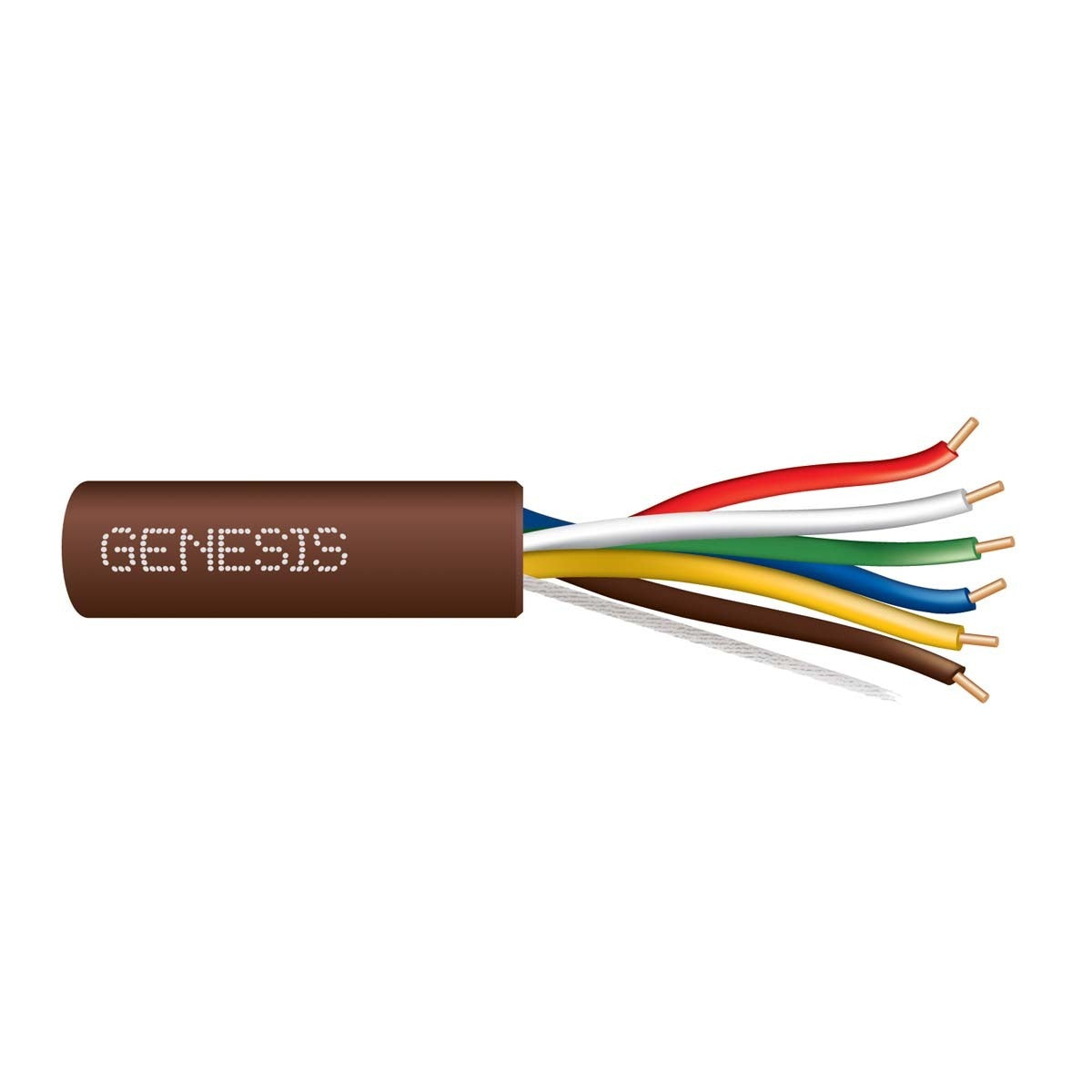

The THERMOSTAT 47140307 is a versatile thermostat cable designed for a variety of installation environments. This cable features six solid conductors made from copper, wrapped in polypropylene insulation and a PVC jacket.

• CL2 rated for safe in-wall installations.
• Sunlight resistant to withstand outdoor conditions.
• Sequential length markings for easy tracking.

Product Highlights

This cable is ideal for use in metal raceways and solid bottom metal cable trays within buildings, excluding air-handling spaces. It supports a voltage rating of 150 Volts and operates effectively within a temperature range of negative twenty to sixty degrees Celsius.

Product Information

Standard Information

• Brand: THERMOSTAT
• MPN: 47140307

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 18 AWG
• Number of Conductors: 6
• Stranded/Solid: Solid
• Insulation Material: Polypropylene
• Jacket Material: PVC
• Voltage Rating: 300 V
• Length: 250 ft
• Outside Diameter: 0.188 inches
• Jacket Thickness: 0.015 inches
• Resistance: 6.5 Ohm
• Capacitance: 25 pF/ft
• Impedance: 100 Ohm
• Temperature Rating: -20 to 60 degrees Celsius
• Cable Type: CL2
• UV Resistant: Yes
• Flame Rating: UL 1685 Vertical Tray Test
• Maximum Operating Voltage: 150 V
• Insulation Color: Blue, Brown, Green, Red, White, Yellow
• Jacket Color: Brown
• Wire Gauge (AWG): 18
• Plenum Rated: False
• Standards: RoHS Compliant
