Thermostat 47114807 Thermostat Cable

Product Description

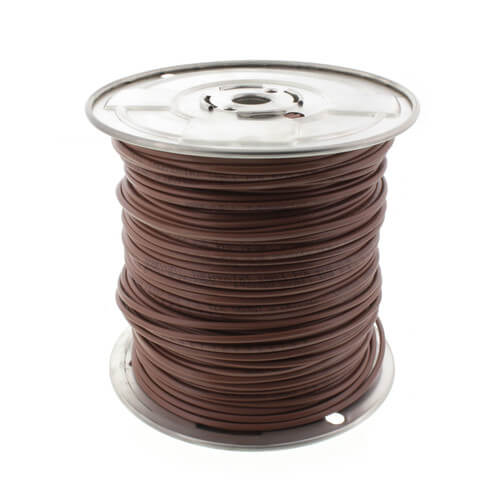

The Thermostat 47114807 is a thermostat cable suitable for thermostat and low voltage control circuits. This cable has three conductors made with eighteen American Wire Gauge (AWG) solid wire. It has a polypropylene insulation which provides good protection. The jacket is made from polyvinyl chloride (PVC) for added durability. It comes on a reel with a length of five hundred feet.

• 18 AWG, 3 Conductor
• CL2 Rated
• Coil Length: 500 feet

Product Highlights

This cable is ideal for thermostat applications and low voltage control systems.

Product Information

Standard Information

• MPN: 47114807
• UPC: 619172035392

Technical Specifications

• Wire Gauge: 18 AWG
• Conductors: 3
• Cable Type: CL2
• Insulation Type: Polypropylene
• Jacket Material: Polyvinyl Chloride (PVC)
• Coil Length: 500 feet
• Temperature Rating: -4°F to 140°F (-20°C to 60°C)
• Flame/Smoke Rating: UL 1685 Vertical Tray
• UV Resistant: Yes
• Standard/Approvals: UL Standard 13; NEC Article 725
• Capacitance Range: 25 pf/ft nominal
• Width: 13.625 inches
• Length: 13.625 inches
• Height: 6.625 inches
