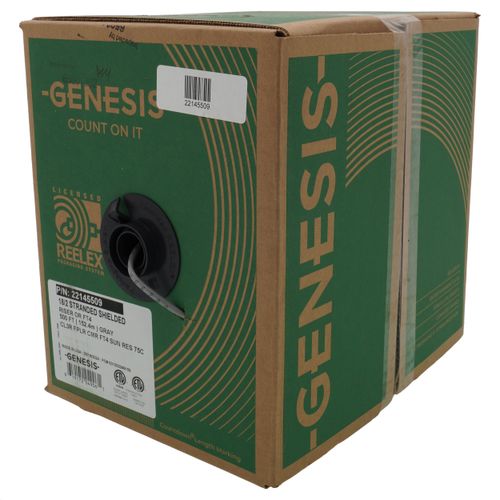

THERMOSTAT 22145509 Genesis 18 AWG 2-Conductor Shielded Riser Control Cable

Product Description

The THERMOSTAT 22145509 is an 18 AWG, 2-conductor shielded control cable. This cable is suitable for various applications, including security systems and audio installations. It is designed to provide reliable signal integrity and is rated for multiple environments.

• Features stranded bare copper conductors.
• Includes an overall foil shield for enhanced performance.
• Suitable for riser applications with a CL3R and CMR rating.

Product Highlights

This 500-foot cable is ideal for low-voltage applications, ensuring reliable connections.

Product Information

Standard Information

• Brand: THERMOSTAT
• MPN: 22145509

Technical Specifications

• Cable Type: Bare Wire
• Cable Length: 500 ft
• Wire Gauge (AWG): 18 AWG
• Number of Conductors: 2
• Conductor Material: Copper
• Insulation Material: Polypropylene
• Jacket Material: PVC
• Shielding: Yes
• Rated Voltage (Max): 300 Volts
• Approvals: CMR, FPLR, CL3R, FT4
• Application: Multi-Purpose
• Temperature Rating (Max): 75 °C
• Temperature Rating (Min): -20 °C
• Jacket Color: Gray
• Insulation Color: Red, Black
• Outside Diameter: 0.154 in
• Weight (Approximate): 18.30 lb
